ID
1353816
$ 1,125.52
1-2 weeks delivery time
-
+
The Flojet R28322722 water booster system is a 24V DC unit with 230 V power supply that maintains constant water pressure for coffee and tea machines, filter systems, carbonators and ice machines, providing up to 6.5 bar delivery pressure, self-priming to 1.5 m, maximum tank pressure 8.3 bar, and suitable for beverages from +1°C to +23°C.
- Description
- Ask a Question
-

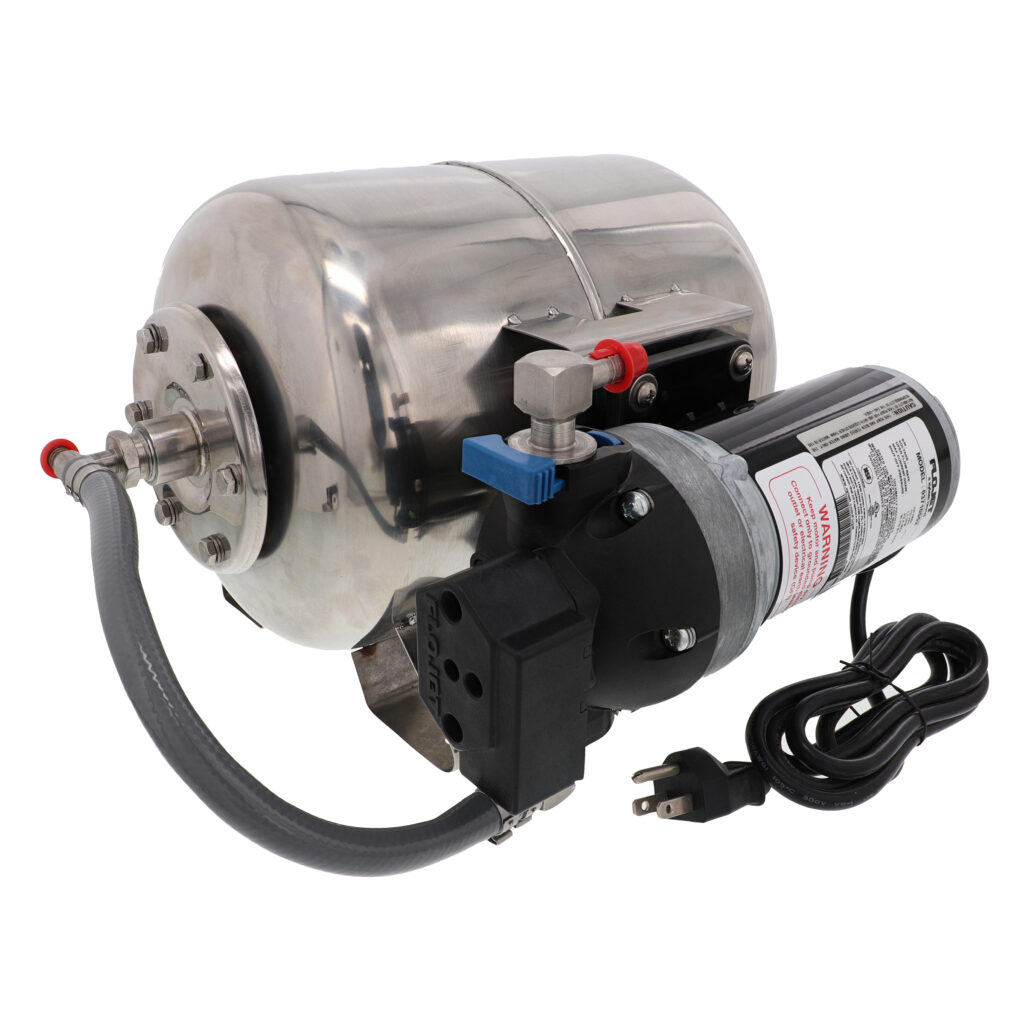

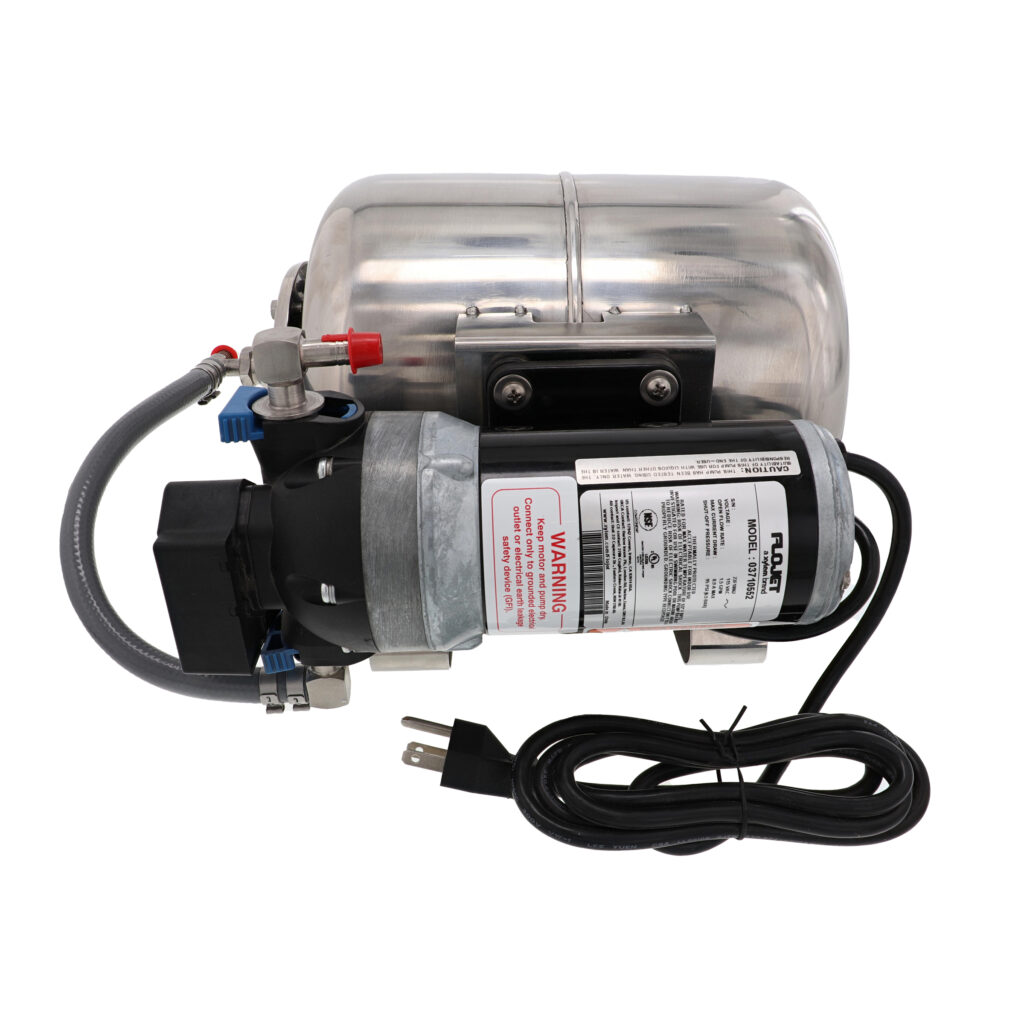

Flojet R28322722 - Water Booster System 24 V
The Flojet R28322722 water booster system is an electric pressure boosting unit that supplies constant water pressure to coffee and tea machines, filter systems, carbonators and ice machines. It also protects the carbonator pump from undersupply.
Performance And Protection
Maximum inlet pressure 2.1 bar and delivery pressure up to 6.5 bar. Maximum tank pressure 8.3 bar. Self-priming up to 1.5 m and safe to run dry.
Design And Specifications
Equipped with a 24 V DC pump and 230 V power supply. Suitable for beverage temperatures from +1°C to +23°C.
Technical Data
Voltage 24 V DC Pump with 230 V Power Supply Inlet Pressure Max 2.1 bar Delivery Pressure Max 6.5 bar Maximum Tank Pressure 8.3 bar Self Priming Up to 1.5 m Beverage Temperature +1°C - +23°C Connections 3/8″ Spouts Dimensions 346 x 324 x 220 mm Weight 7.9 kg Approvals NSF, UKCA, CE
Brand: Flojet
Article: R28322722 -
