The Flojet R3710545A three-chamber diaphragm pump is designed for higher pressure applications, delivering up to 5.3 LPM with suction lift up to 2.4 m, pressure switch up to 12.4 bar, Santoprene diaphragm, EPDM valves, nylon glass fibre reinforced housing, available in 24V or 230V versions with 3/8″ female thread connections.
- Description
- Ask a Question
-

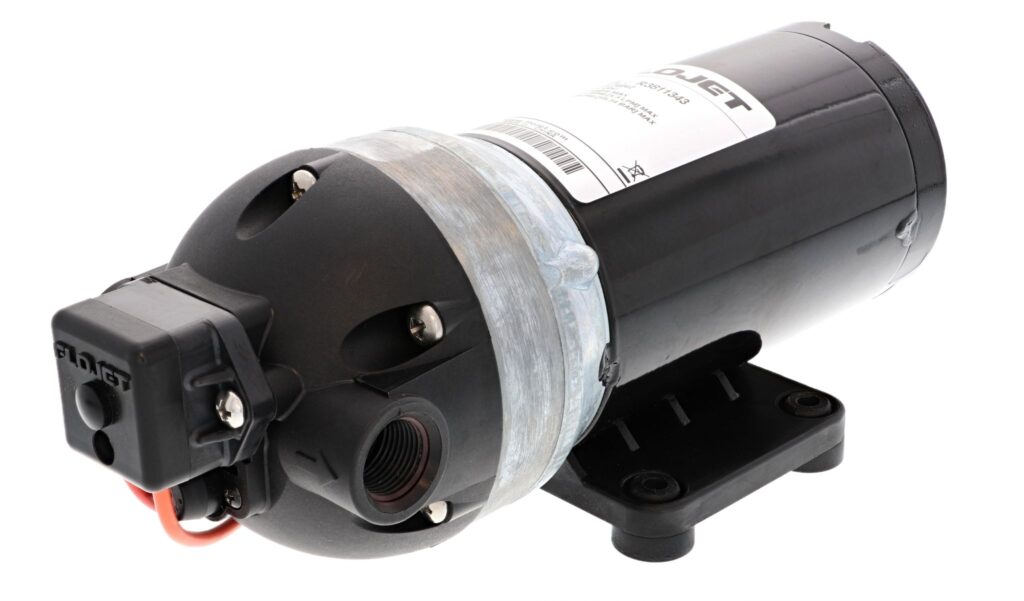

Flojet R3710545A - Three-Chamber Diaphragm Pump
The Flojet R3710545A is a high quality electric three-chamber diaphragm pump designed for higher pressure applications. It is suitable for demanding systems requiring stable flow and elevated pressure performance.
Performance And Operation
Delivers up to 5.3 LPM with suction lift up to 2.4 m. The pressure switch is available in different versions up to 12.4 bar. Operating temperature range from +5°C to +60°C.
Construction
Housing made of nylon reinforced with glass fibre. Equipped with EPDM valves and Santoprene diaphragm. Available in 24V or 230V versions with 3/8″ female thread connections.
Technical Data
Flow Rate Up to 5.3 LPM Temperature Range +5°C - +60°C Suction Lift Up to 2.4 m Pressure Switch Up to 12.4 bar (depending on version) Housing Nylon, Glass Fibre Reinforced Valves EPDM Diaphragm Santoprene Connection 3/8″ Female Thread Voltage 24V or 230V Version Weight 3,5 kg Approvals NSF, FDA, CE
Brand: Flojet
Article: R3710545A -
