ID
1353813
$ 488.48
1-2 weeks delivery time
-
+
The Flojet Q452F-168S-2P Versijet Series 4-chamber diaphragm pump is a 24V DC pump with Viton check valve and integrated pressure/demand switch, delivering up to 17 LPM at 4.1 bar, self-priming up to 2.4 m, built with Santoprene diaphragm, glass filled polypropylene housing, quick connect 3/4″ hose barbs, and suitable for fluid temperatures from 4 - 60°C.
- Description
- Ask a Question
-

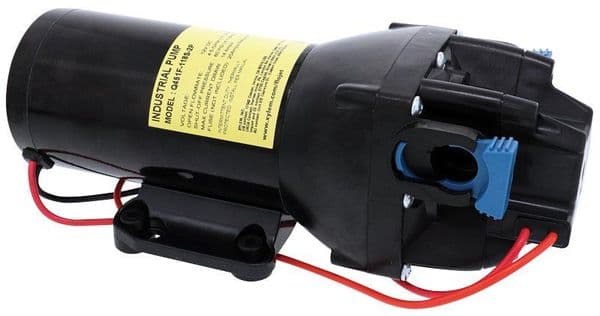

Flojet Q452F-168S-2P - Versijet Series 4-Chamber Pump 24V Viton Check Valve
The Flojet Q452F-168S-2P Versijet Series 4-chamber diaphragm pump is designed for 24V DC systems requiring reliable liquid transfer and controlled pressure. It features a Viton check valve and integrated pressure/demand switch.
Performance And Operation
Maximum flow rate of 17.0 LPM with a 4.1 bar switch setting. The pump includes an internal bypass and operates on 24 Volt DC at 8 Amps. Self-priming up to 2.4 m.
Construction
Built with Santoprene diaphragm and glass filled polypropylene housing. Quick connect ports with 3/4″ hose barbs allow fast installation. Suitable for working fluid temperatures from 4 - 60°C. Designed for intermittent duty.
Technical Data
Voltage 24 Volt DC Current 8 Amps Flow Rate 17.0 LPM Switch Setting 4.1 bar Check Valve Viton Diaphragm Santoprene Ports Quick Connect with 3/4″ Hose Barbs Self Priming Up to 2.4 m Fluid Temperature 4 - 60°C Housing Glass Filled Polypropylene Duty Intermittent
Brand: Flojet
Article: Q452F-168S-2P -
