ID
1353803
$ 120.47
1-2 weeks delivery time
-
+
The Flojet M502052B M-Series Mini Bag-in-Box pump handles standard syrup and non-pulp juice concentrates, featuring an integrated vacuum switch, air-powered operation with adjustable gas or air pressure, compact countertop design, and service life up to 75,000 L.
- Description
- Ask a Question
-

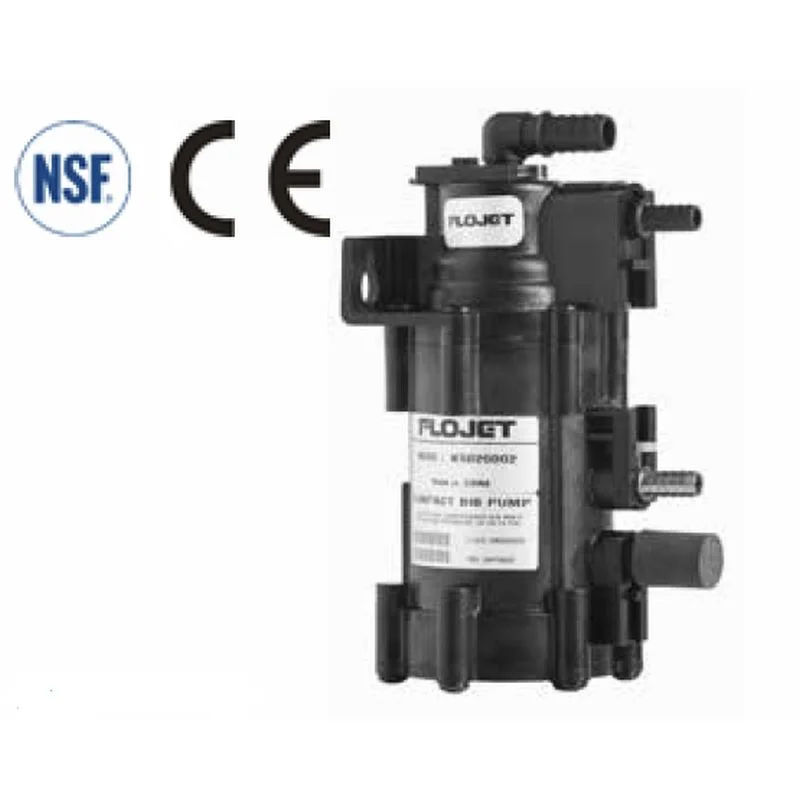

Flojet M502052B - Mini Bag-In-Box Pump M-Series
The Flojet M502052B M-Series Mini Bag-in-Box diaphragm pump handles standard syrup viscosity and non-pulp juice concentrates. Designed for BIB applications such as fruit juice concentrate without pulp, tea, wine and cider.
Function And Design
The integrated vacuum switch automatically stops the pump when the bag is empty. The air powered compact design is ideal for countertop installations and ensures even flow for accurate dispensing.
Performance And Operation
Driven by compressed air, nitrogen or CO2 with adjustable gas or air pressure. Developed for pumping up to 75,000 l. Suitable for intermittent transferring.
Technical Data

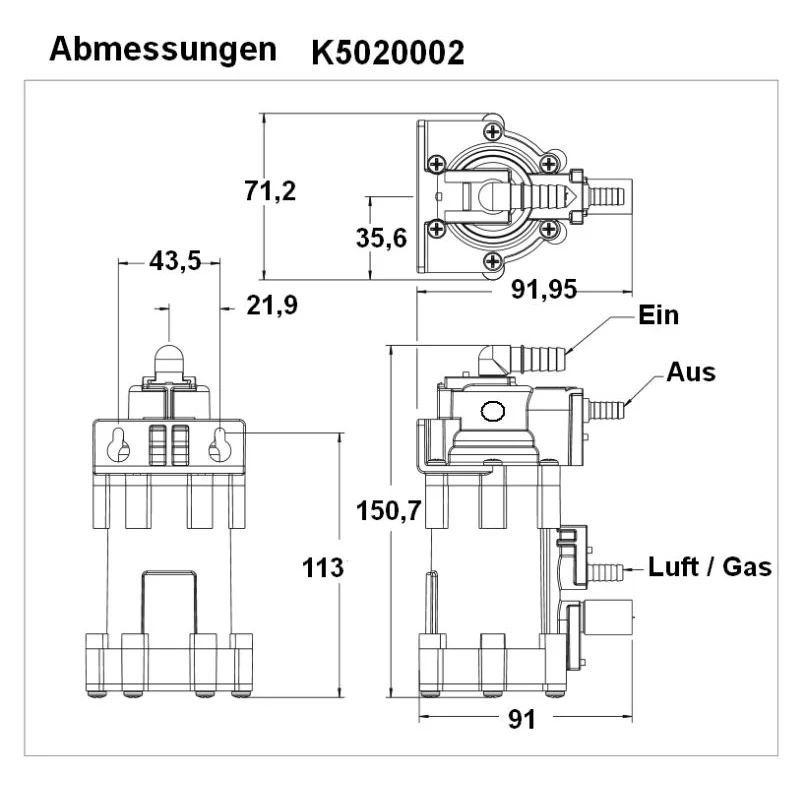

Drive Compressed Air / Gas Flow Rate Up to 3.5 l/min Displacement Per Stroke 14,8 cm3 Supply Pressure 1.4 - 4.8 bar Suction Height Up to 1.9 m Gas Pressure Up to 4.5 bar Connections Inlet 3/8″ Celcon Straight Connections Outlet 1/4″ Celcon Straight Connections Gas Inlet 1/4″ Celcon Straight Material Polypropylene, Santoprene®, EPDM, Stainless Steel 304 Dimensions 151 mm length x 71 mm width x 91 mm height Weight 0.27 kg Approvals NSF, CE Service Life Up to 75,000 l
Brand: Flojet
Article: M502052B -
