The Flojet G56G202E is a G56 series beer pump designed for beer systems to provide even flow from keg to tap. It delivers 26.5 L/min free discharge and shuts off automatically at 6.9 bar (100 PSI), with self-priming up to 4.5 m and dry-run safe operation. The unit uses Santoprene diaphragms and valves with EPDM O-rings, supports solids up to 3.2 mm, has a maximum temperature of 49°C, straight hose connections (inlet 9.52 mm / 3/8 inch; outlet-gas 6.35 mm / 1/4 inch; 6.35 mm / 1/4 inch hose), and measures 11.6 cm (H) x 8.2 cm (W) x 14.9 cm (L) with a shipping weight of 1.00 kg.
- Description
- Ask a Question
-

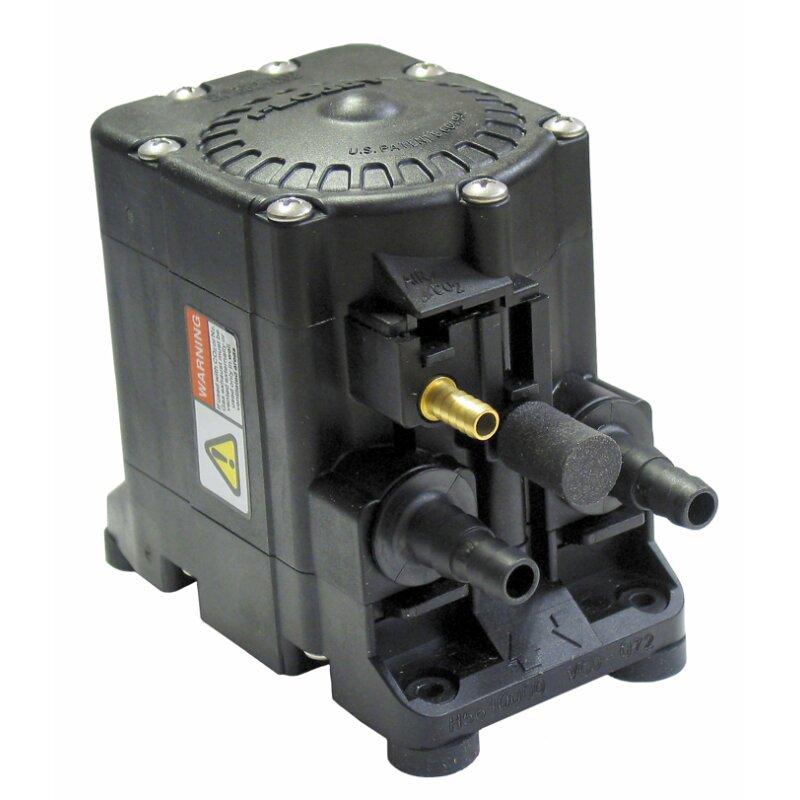

Flojet G56 Series Beer Dispensing Diaphragm Pump
The Flojet G56G202E is a G56 series beer pump intended for beer dispensing systems. It helps provide consistent beer flow from the keg to the tap and is designed to support beverage quality during transfer.
Technical Specifications
Series G56 Application Beer systems Pumping Capacity (Free Discharge / No Back Pressure) 26.5 L/min Automatic Shut-Off Pressure 6.9 bar (100 PSI) Self-Priming Up to 4.5 m Dry-Run Capability Dry-run safe Max Temperature 49�0C Connections (Inlet) 9.52 mm (3/8 inch) straight hose connection Connections (Outlet - Gas) 6.35 mm (1/4 inch) straight hose connection Hose 6.35 mm (1/4 inch) Materials Santoprene diaphragms and valves; EPDM O-rings Design Corrosion-resistant sanitary design Solids Handling Up to 3.2 mm diameter Dimensions (H x W x L) 11.6 cm x 8.2 cm x 14.9 cm Shipping Weight 1.00 kg Brand Flojet Product Portfolio Air-operated diaphragm pumps Output (L/min) 26 Recognized Certificates NSF, FDA, EC 1935, CE
Features
- Designed for use in beer systems to provide even flow
- Automatic shut-off at 6.9 bar (100 PSI)
- Self-priming up to 4.5 m
- Dry-run safe
- Maximum temperature rating of 49�0C
- Sanitary, corrosion-resistant construction
- Suitable for solids up to 3.2 mm diameter
Product Details
If you are unsure about material compatibility between the pump materials and the pumped liquid, confirm compatibility before putting the pump into operation.
-
