The Flojet R3B01142A MPU 12V Triplex Pump is a compact 12V three-chamber diaphragm pump delivering 5.3 LPM at 4.1 bar, self-priming to 2.4 m with internal bypass, built with Santoprene diaphragm, EPDM valves, polypropylene pump body, and 3/8″ NPT connection, ideal for controlled liquid transfer and dispensing.
- Description
- Ask a Question
-

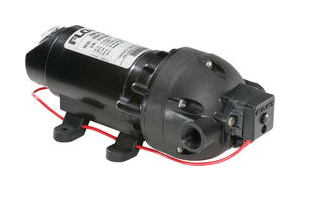

Flojet R3B01142A - MPU 12V Triplex Pump
The Flojet R3B01142A MPU 12V Triplex pump is a compact three-chamber diaphragm pump designed for controlled liquid transfer and dispensing applications.
Performance
Delivers 5.3 LPM (1.4 gal/min) with maximum pressure of 4.1 bar (50 psi). Self-priming up to 2.4 m and fitted with internal bypass.
Construction
Built with Santoprene diaphragm, EPDM valves and polypropylene pump body. Equipped with 3/8″ NPT connection.
Technical Data
Voltage 12 V Power Consumption 6 A Flow Rate 5.3 LPM Max Pressure 4.1 bar Connection 3/8″ NPT Self Priming Up to 2.4 m Diaphragm Santoprene Pump Body Polypropylene Temperature Range 5°C to 60°C Weight 1.5 kg Certification CE
Brand: Flojet
Article: R3B01142A -
