The Flojet Duplex II diaphragm pump unit is a 230V AC demand-duty pump with a 60 PSI pressure switch and 3/8 inch NPT female inlet and discharge ports. It features a polypropylene pump body, Viton diaphragm, Viton check valve, and a medium pressure cam, with self-priming capability up to 8 ft (2.4 m) and the ability to run dry without damage. The motor operates on 50/60 Hz, the maximum fluid temperature is 140°F, inlet pressure must not exceed 30 PSI (2.1 bar), and pump weight is 5 lb.
- Description
- Ask a Question
-

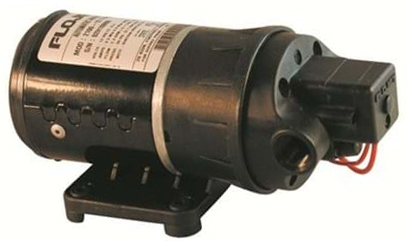

Flojet Duplex II Demand Diaphragm Pump With Pressure Switch
The Flojet D3722V5011A is a Duplex II series diaphragm pump built for general industrial fluid handling tasks such as transfer, spraying, cooling, circulation, filtration, and dispensing. It is configured as a demand-duty pump with an integrated pressure switch that automatically stops and restarts the pump based on discharge pressure, and it is designed to self-prime and tolerate dry running without damage.
Technical Specifications
Series Duplex II Pump Type Diaphragm pump Body Material Polypropylene Diaphragm Material Viton Check Valve Material Viton Cam Medium pressure cam Pressure Switch Setting (Off Set Point) 60 PSI Motor Voltage 230 Volts AC Frequency 50/60 Hz Self-Priming Up to 8 ft (2.4 m) Max Fluid Temperature 140F Max Inlet Pressure 30 PSI (2.1 bar) Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Weight 5 lb
Features
- Demand-duty operation with pressure switch shutoff and automatic restart
- Can run dry without damage
- Self-priming up to 8 ft (2.4 m)
- Pump head can be rotated in 90-degree increments to simplify plumbing
- Designed with a new diaphragm and valve design to support higher dry vacuum
Product Details
- The pressure switch shuts the pump off when discharge pressure rises to 60 PSI and restarts when pressure drops as a valve is opened.
- Demand operation is considered intermittent duty; higher duty cycles can reduce expected pump life.
- Recommended inlet protection: use a minimum 40 mesh strainer or filter in the inlet line to help prevent debris from entering the pump.
- If a check valve is installed in the plumbing, it must have a cracking pressure of no more than 2 PSI (0.14 bar) to avoid interfering with priming.
- Mount the pump in a dry, adequately ventilated area; if used outdoors, shield it from water, dust, sunlight, and washdown spray.
- Do not use to pump flammable fluids (such as gasoline, kerosene, or fuel oil) and do not use in an explosive environment.
Available Parts
- Catalog # 20914-002A Check valve assembly kit (Type: Duplex II series pumps 115 VAC)
-
