The Flojet D1631H1311B Duplex II diaphragm pump is a 115V AC unit with a polypropylene pump body, EPDM diaphragm, and Santoprene check valve. It uses a medium pressure cam and an external pressure bypass set to 50 PSI, with no switch (manual on/off operation). The pump is self-priming up to 8 ft (2.4 m), can run dry without damage, has 3/8 inch NPT female inlet and discharge ports, supports 50/60 Hz power, and weighs 5 lb.
- Description
- Ask a Question
-

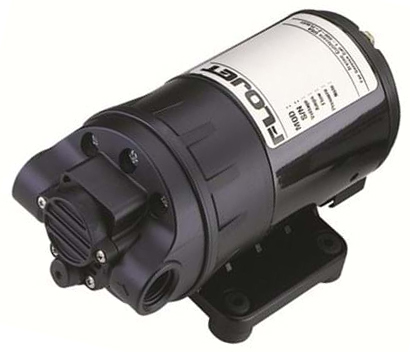

Flojet Duplex II Diaphragm Pump With 50 PSI Bypass
The Flojet D1631H1311B is a Duplex II series diaphragm pump built for fluid handling tasks such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. It is configured for manual control (no switch) and uses an external bypass system to bypass flow internally when pressure exceeds the bypass setting.
Technical Specifications
Pump Type Duplex II diaphragm pump Motor Voltage 115V AC Frequency 50/60 Hz Body Material Polypropylene Diaphragm Material EPDM Check Valve Material Santoprene Cam Medium pressure cam Switch No switch Pressure Bypass 50 PSI Self-Priming Up to 8 ft (2.4 m) Max Fluid Temperature 140�F Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Max Inlet Pressure 30 PSI (2.1 bar) Weight 5 lb
Features
- External bypass that bypasses internally when pressure is over 50 PSI
- Self-priming up to 8 ft (2.4 m)
- Can run dry without damage
- Pump head can be rotated in 90� increments to simplify plumbing
- Designed to run at high pressures at low or high flow rates, and continues to run until power is manually turned off
Product Details
- Intended for intermittent duty cycles; it can be run continuously for short periods of time (higher duty cycle shortens expected pump life).
- For priming, keep the discharge line open to allow trapped air to escape and avoid airlock.
- Recommended inlet protection: a minimum 40 mesh strainer or filter in the inlet line.
- Tubing guidance: minimum 3/8 inch ID and at least 20 inches in length; avoid crimping or kinking.
- Check valve guidance: if installed, cracking pressure must be no more than 2 PSI (0.14 bar).
- Important limitations stated by the manufacturer: do not pump flammable fluids (gasoline, kerosene, fuel oil, etc.) and do not use in an explosive environment.
-
