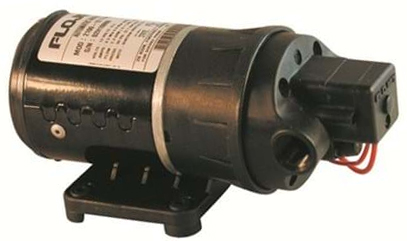

The Flojet D3722V3011A Duplex II diaphragm pump is a 230V AC demand-duty unit with a 30 PSI pressure switch and 50/60 Hz motor. It features polypropylene body construction with a Viton diaphragm and Viton check valve, plus a medium pressure cam. Ports are 3/8 inch NPT female inlet and 3/8 inch NPT female discharge; the pump is self-priming up to 8 ft (2.4 m), can run dry without damage, has a maximum temperature rating of 140°F, and weighs 5 lb.
- Description
- Ask a Question
-
Duplex II Diaphragm Demand Pump With Pressure Switch
The Flojet D3722V3011A is a Duplex II series diaphragm pump assembly built for general industrial use, including liquid transfer, spraying, cooling, circulation, filtration, and dispensing. It is equipped with a pressure switch for demand operation, automatically stopping when the discharge is closed and restarting when flow is opened again.
Technical Specifications
Series Duplex II Pump Type Diaphragm pump (demand duty) Motor Voltage 230V AC Frequency 50/60 Hz Pressure Switch Setting (Off Set Point) 30 PSI Body Material Polypropylene Diaphragm Material Viton Check Valve Material Viton Cam Medium pressure cam Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Self-Priming Up to 8 ft (2.4 m) Maximum Temperature 140°F Weight 5 lb
Features
- Demand operation with pressure switch shutoff at 30 PSI when the discharge valve is closed
- Self-priming up to 8 ft (2.4 m) (vertical prime can vary based on viscosity, suction tube size, foot valve, and configuration)
- Can run dry without damage
- Pump head can be rotated in 90-degree increments to simplify plumbing
Product Details
- Designed for intermittent duty cycles; running at or near maximum thermal limit for extended periods can shorten pump life.
- Mount in a dry, adequately ventilated area; if installed outdoors, shield from water, dust, sunlight, and washdown spray.
- Do not use to pump flammable fluids (gasoline, kerosene, fuel oil, etc.) and do not use in an explosive environment.
- Recommended inlet protection: use a minimum 40 mesh strainer or filter in the inlet line.
- Inlet pressure must not exceed 30 PSI (2.1 bar).
- If a check valve is installed in the plumbing, it must have a cracking pressure of no more than 2 PSI (0.14 bar).
- Tubing guidance: use flexible hose compatible with the fluid; minimum 3/8 inch ID and at least 20 inches long; avoid crimping or kinking.
- Wiring (230V AC): brown wire lead is live/common, blue wire is neutral, green/yellow is ground. Disconnect power before installation and follow applicable electrical and safety codes.
- Available part listed: 20914-002A check valve assembly kit (Duplex II Series Pumps, 115 VAC).
-
