The Flojet D3135H1411 Duplex II diaphragm pump is a 12V DC pump with a polypropylene body, EPDM diaphragm, Santoprene check valve, and a high-pressure cam. It uses an external bypass system with a 70 PSI pressure bypass and has no switch, so it runs until power is manually turned off. Ports are 3/8 inch NPT female inlet and 3/8 inch NPT female discharge; the pump is self-priming up to 8 ft (2.4 m), can run dry without damage, is rated for a maximum temperature of 140°F, and weighs 5 lbs.
- Description
- Ask a Question
-

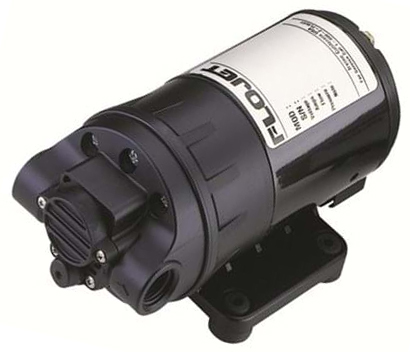

Flojet Duplex II 12V DC Diaphragm Pump with 70 PSI Bypass
The Flojet D3135H1411 is a Duplex II series diaphragm pump built for general industrial uses such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. It is designed for high-pressure operation across low or high flow rates and uses an external bypass that recirculates internally when pressure exceeds the bypass setting.
Technical Specifications
Series Duplex II Pump Type Diaphragm Pump Motor Voltage 12 Volt DC Body Material Polypropylene Diaphragm Material EPDM Check Valve Material Santoprene Cam High Pressure Switch No Switch Pressure Bypass 70 PSI Inlet Port 3/8 inch NPT Female Discharge Port 3/8 inch NPT Female Self-Priming Up to 8 ft (2.4 m) Max Fluid Temperature 140°F Max Inlet Pressure 30 PSI (2.1 bar) Weight 5 lbs
Features
- Runs dry without damage
- External bypass system that bypasses flow internally above 70 PSI
- Designed to continue running until power is manually turned off (no switch)
- Pump head can be rotated in 90-degree increments to simplify plumbing
Product Details
- Intended for intermittent duty cycles; not recommended for continuous duty service due to limited motor brush life (can run continuously for short periods).
- For priming, keep the discharge line open to allow trapped air to escape and help avoid airlock.
- Recommended tubing: minimum 3/8 inch ID and at least 20 inches long; do not crimp or kink.
- If a check valve is installed in plumbing, it must have a cracking pressure of no more than 2 PSI (0.14 bar).
- A minimum 40 mesh strainer or filter in the inlet line is recommended to help prevent debris from entering the pump.
- Do not use to pump flammable fluids (gasoline, kerosene, fuel oil, etc.) and do not use in an explosive environment.
-
