The Flojet Duplex II diaphragm pump is a 115V AC demand-duty unit with a 60 PSI pressure switch and a medium pressure cam. It features polypropylene body construction with an EPDM diaphragm and EPDM check valve, plus 3/8 inch NPT female inlet and discharge ports. The pump is self-priming up to 8 ft (2.4 m), can run dry without damage, operates on 50/60 Hz power, has a maximum fluid temperature of 140°F, and weighs 5 lb.
- Description
- Ask a Question
-

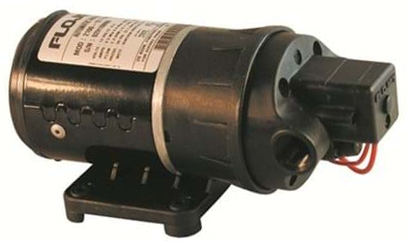

Duplex II Demand-Duty Diaphragm Pump With 60 PSI Pressure Switch
The Flojet D3631E5011 is a Duplex II series diaphragm pump driven by a 115V AC motor and equipped with a pressure switch for demand operation. It is intended for a wide range of industrial uses such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing, and is built with materials selected for handling a broad range of chemicals.
Technical Specifications
Pump Series Duplex II Pump Type Diaphragm Pump Body Material Polypropylene Diaphragm Material EPDM Check Valve Material EPDM Cam Medium Pressure Cam Pressure Switch Setting (Off Set Point) 60 PSI Motor Voltage 115V AC Frequency 50/60 Hz Inlet Port 3/8 inch NPT Female Discharge Port 3/8 inch NPT Female Self-Priming Up to 8 ft (2.4 m) Max Fluid Temperature 140°F Weight 5 lb Max Inlet Pressure 30 PSI (2.1 bar) Recommended Inlet Strainer Minimum 40 mesh strainer or filter Check Valve Cracking Pressure (If Installed in Plumbing) No more than 2 PSI (0.14 bar)
Features
- Demand operation with pressure switch shutoff when discharge is closed and restart when pressure drops
- Self-priming up to 8 ft (2.4 m)
- Run-dry capable without damage
- Diaphragm and valve design intended to pull higher dry vacuum
- Pump head can be rotated in 90-degree increments to simplify plumbing
Product Details
- Demand operation is considered intermittent duty; higher duty cycles reduce expected pump life.
- Mount in a dry, adequately ventilated area. For outdoor mounting, shield the pump from water, dust, sunlight, and washdown spray.
- Do not use to pump flammable fluids (including gasoline, kerosene, fuel oil) and do not use in an explosive environment.
- For priming, keep the discharge line open to allow trapped air to escape and avoid airlock.
- Use flexible hose compatible with the fluid and of the correct pressure rating; tubing should be minimum 3/8 inch ID and at least 20 inches long. Do not crimp or kink.
- Use care with sealers and tape; debris entering the pump can inhibit valve action and affect priming or shutoff.
- For freezing conditions, the pump must be liquid-free or winterized with appropriate antifreeze chemicals.
- Electrical wiring guidance provided: on 115V AC models, black is live/common, white is neutral, and green/yellow is ground. Disconnect power before installation and follow applicable electrical and safety codes.
Available Parts
- Catalog # 20914-003A — Check Valve Assembly Kit (Duplex II Series Pumps, 115 VAC)
-
