ID
1351245
$ 465.59
1-2 weeks delivery time
-
+
The Aquadrive 6040402 CV15 Adapter Flange 5.75" is designed to connect Aquadrive CV15 propulsion systems (CVB15.10) to ZF HSW450H2 marine gearboxes. Adapter dimensions: D 156 mm, PC/d 120.7 / 13, Q 6 / 60°, B/M1 76.2 / (-2), Le 21.5 mm. Supplied as 1 piece.
- Description
- Ask a Question
-

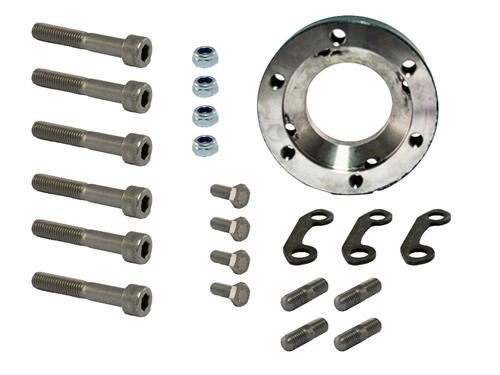

Aquadrive 6040402 – CV15 Adapter Flange 5.75" for ZF HSW450H2 Gearboxes
The Aquadrive 6040402 Adapter Flange is designed to connect Aquadrive propulsion systems with compatible marine gearboxes. This adapter provides a secure mechanical interface between the gearbox output flange and the Aquadrive constant velocity drivetrain assembly.
The flange is engineered for Aquadrive CV15 propulsion systems (CVB15.10) and is specifically compatible with ZF HSW450H2 marine gearboxes. Precision-machined mounting dimensions ensure accurate alignment and reliable installation within marine propulsion systems.
Using the correct adapter flange allows proper integration of the Aquadrive thrust bearing and constant velocity shaft system with the gearbox output flange, helping maintain smooth torque transmission and protecting drivetrain components from misalignment loads.
Key Features
- Adapter flange for Aquadrive CV15 propulsion systems
- Designed for CVB15.10 drivetrain installations
- Compatible with ZF HSW450H2 marine gearboxes
- 5.75" gearbox flange interface
- Precision-machined mounting geometry for proper alignment
- Suitable for marine propulsion drivetrain installations
Technical Specifications
Product Name Aquadrive CV15 Adapter Flange Product Number 6040402 CV Size CV15 Flange Size 5.75" D 156 mm PC/d 120.7 / 13 Q 6 / 60° B / M1 76.2 / (-2) Le 21.5 mm Compatible System Aquadrive CVB15.10 Compatible Gearbox ZF HSW450H2 Brand Aquadrive Sales Unit 1 piece -
