ID
1351247
$ 404.09
1-2 weeks delivery time
-
+
The Aquadrive 6040451 CV21 Adapter Flange 5.75" connects Aquadrive CV21 propulsion systems (CVB21.20) to ZF HSW450A and PRM 500 / 750 / 1000 marine gearboxes. Adapter dimensions: D 156 mm, PC/d 120.7 / 13, Q 6 / 60°, B/M1 76.2 / (-2), Le 28 mm. Supplied as 1 piece.
- Description
- Ask a Question
-

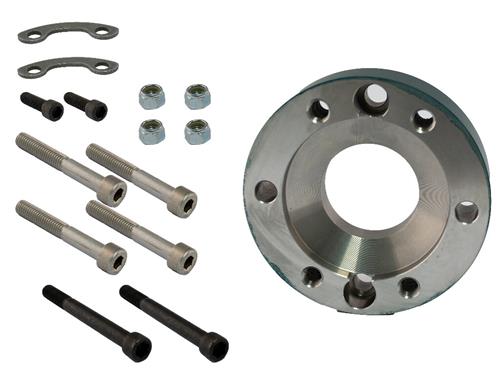

Aquadrive 6040451 – CV21 Adapter Flange 5.75" for ZF HSW450A and PRM 500 / 750 / 1000 Gearboxes
The Aquadrive 6040451 Adapter Flange is designed to connect Aquadrive propulsion systems with compatible marine gearboxes. It provides a precise mechanical interface between the gearbox output flange and the Aquadrive constant velocity drivetrain assembly.
This adapter flange is engineered for Aquadrive CV21 propulsion systems (CVB21.20) and is compatible with ZF HSW450A and PRM 500, PRM 750, and PRM 1000 marine gearboxes. Precision-machined mounting geometry ensures proper drivetrain alignment and secure installation.
Correct adapter selection is essential for Aquadrive installations, as it allows the thrust bearing and constant velocity shaft system to integrate correctly with the gearbox output flange, helping maintain smooth torque transmission and reducing drivetrain stress caused by misalignment.
Key Features
- Adapter flange for Aquadrive CV21 propulsion systems
- Designed for CVB21.20 drivetrain installations
- 5.75" gearbox flange interface
- Precision-machined mounting geometry
- Designed for marine propulsion drivetrain integration
Compatible Gearboxes
- ZF HSW450A
- PRM 500
- PRM 750 (models 265, 310, 401, 601)
- PRM 1000
Technical Specifications
Product Name Aquadrive CV21 Adapter Flange Product Number 6040451 CV Size CV21 Flange Size 5.75" D 156 mm PC/d 120.7 / 13 Q 6 / 60° B / M1 76.2 / (-2) Le 28 mm Compatible System Aquadrive CVB21.20 Brand Aquadrive Sales Unit 1 piece -
