ID
1351244
$ 345.57
1-2 weeks delivery time
-
+

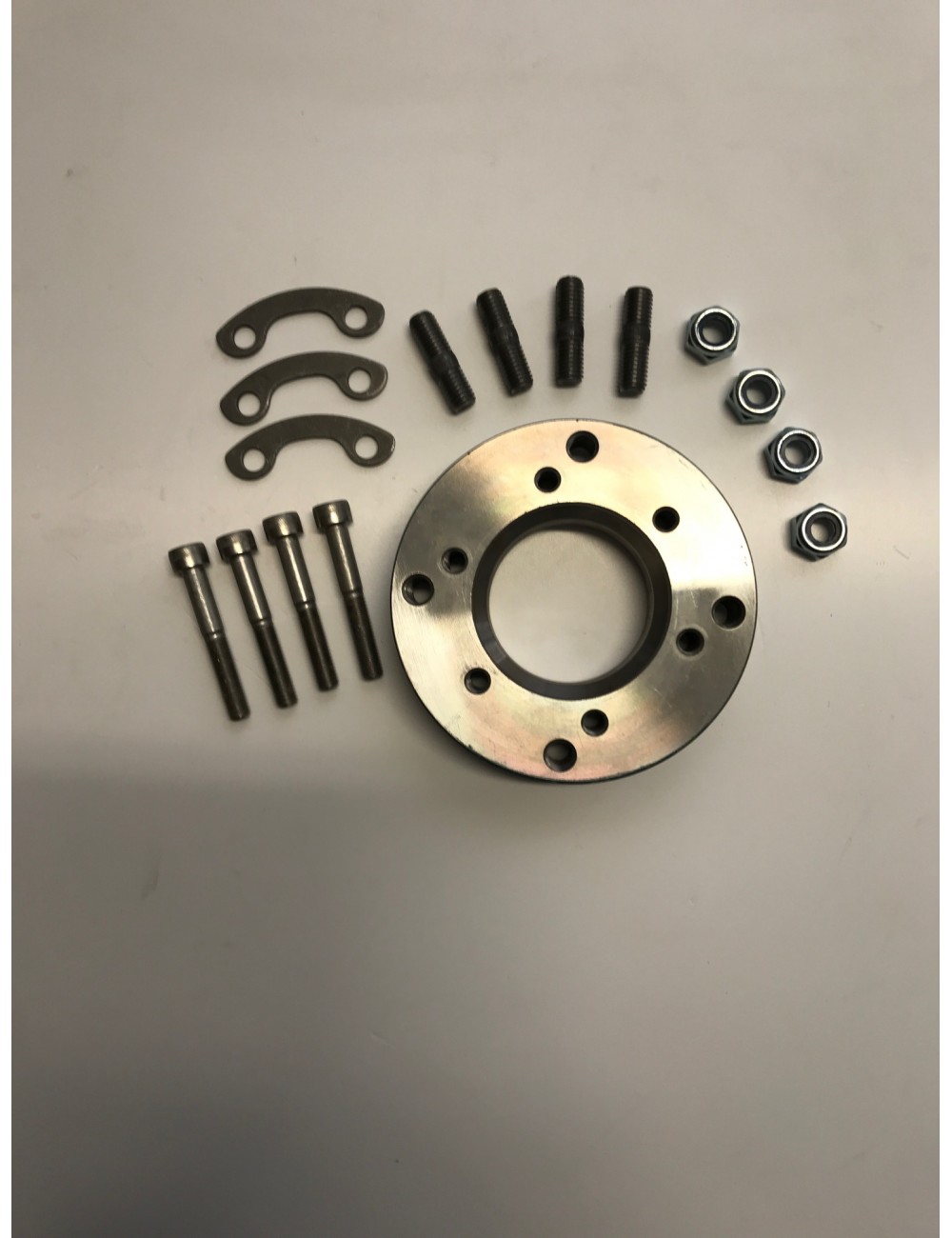

The Aquadrive 6040365 CV10 Adapter Flange Ø100 mm is designed to connect Aquadrive CV10 propulsion systems (CVB10.10) to Yanmar KM2P gearboxes and KM3-A / KM3-P transmissions (without torque limiter). Adapter dimensions: D 108 mm, PC/d 78 / M10, Q 4 / 90°, B/M1 50 / (-2), Le 19 mm. Supplied as 1 piece.
- Description
- Ask a Question
-
Aquadrive 6040365 – CV10 Adapter Flange Ø100 mm for Yanmar KM2P / KM3-A / KM3-P Gearboxes
The Aquadrive 6040365 Adapter Flange is designed to connect Aquadrive propulsion systems with compatible Yanmar marine gearboxes. This adapter provides a secure mechanical interface between the gearbox output flange and the Aquadrive constant velocity drivetrain assembly.
The flange is engineered for Aquadrive CV10 propulsion systems (CVB10.10) and is compatible with Yanmar KM2P gearboxes and KM3-A / KM3-P transmissions without torque limiter. Precision-machined mounting geometry ensures accurate alignment and reliable installation in marine propulsion systems.
Using the correct adapter flange allows proper integration of the Aquadrive thrust bearing and constant velocity shaft system with the gearbox output flange, helping maintain smooth torque transmission and reducing drivetrain loads caused by engine movement.
Key Features
- Adapter flange for Aquadrive CV10 propulsion systems
- Designed for CVB10.10 drivetrain installations
- Compatible with Yanmar KM2P, KM3-A and KM3-P gearboxes
- Suitable for gearboxes without torque limiter
- Precision-machined mounting interface for accurate alignment
- Designed for marine propulsion drivetrain installations
Technical Specifications
Product Name Aquadrive CV10 Adapter Flange Product Number 6040365 CV Size CV10 Flange Diameter 100 mm D 108 mm PC/d 78 / M10 Q 4 / 90° B / M1 50 / (-2) Le 19 mm Compatible System Aquadrive CVB10.10 Compatible Gearboxes Yanmar KM2P, KM3-A, KM3-P (without torque limiter) Brand Aquadrive Sales Unit 1 piece -
