Aquadrive 6040361 CV10 Adapter Flange Ø100 mm for Volvo Penta MS2 Gearbox (1981+)

ID 1351243

$ 340.09

1-2 weeks delivery time

- +

Add to cart

The Aquadrive 6040361 CV10 Adapter Flange Ø100 mm is designed to connect Aquadrive CV10 propulsion systems to Volvo Penta MS2 marine gearboxes (1981 and later). The flange provides a precise mechanical interface between the gearbox output flange and the Aquadrive drivetrain assembly. Adapter dimensions: D 108 mm, PC/d 80 / 11, Q 4 / 90°, B/M1 60 / 7, Le 22 mm.

Description
Ask a Question

Aquadrive 6040361 – CV10 Adapter Flange Ø100 mm for Volvo Penta MS2 Gearbox (1981+)

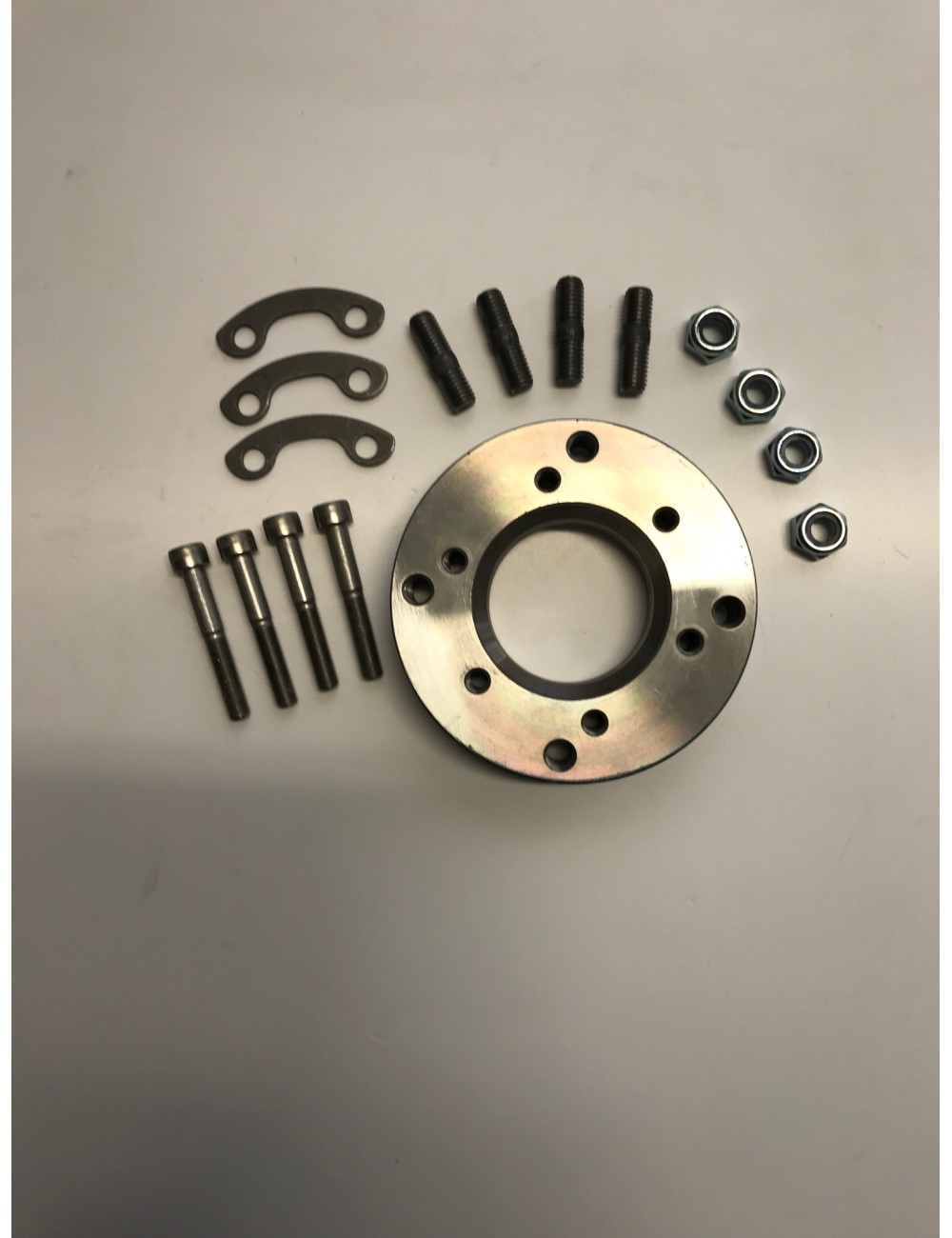

The Aquadrive 6040361 Adapter Flange is designed to connect Aquadrive propulsion systems with compatible Volvo Penta marine gearboxes. This adapter provides a secure mechanical interface between the gearbox output flange and the Aquadrive constant velocity drivetrain assembly.

The flange is engineered for Aquadrive CV10 propulsion systems and is compatible with Volvo Penta MS2 gearboxes (1981 and later). Precision-machined mounting dimensions ensure accurate alignment and reliable installation within marine propulsion systems.

Using the correct adapter flange allows proper integration of the Aquadrive thrust bearing and constant velocity shaft system with the gearbox, helping maintain smooth torque transmission and reliable propulsion performance.

Key Features

Adapter flange for Aquadrive CV10 propulsion systems
Designed for Volvo Penta MS2 gearboxes (1981+)
Provides secure connection between gearbox and Aquadrive drivetrain
Precision-machined mounting interface
Supports proper alignment of marine propulsion components
Suitable for marine drivetrain installations

Technical Specifications

Product Name	Aquadrive CV10 Adapter Flange
Product Number	6040361
CV Size	CV10
Flange Diameter	100 mm
D	108 mm
PC/d	80 / 11
Q	4 / 90°
B / M1	60 / 7
Le	22 mm
Compatible Gearbox	Volvo Penta MS2 (1981 and later)
Brand	Aquadrive
Sales Unit	1 piece
