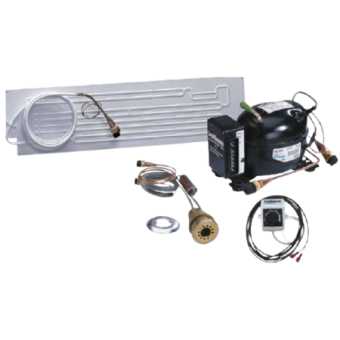

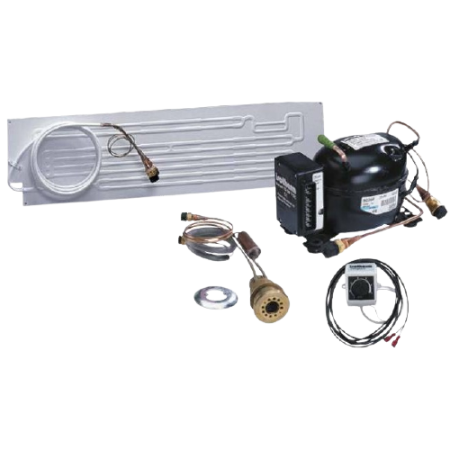

Isotherm U200X066P12311AA – SP 2554 Water-Cooled Refrigeration Unit, Large Flat Evaporator 47" × 7"

ID 1303140

$ 2,008.24

1-2 weeks delivery time

- +

Add to cart

The Isotherm U200X066P12311AA SP “2554” features a Large flat evaporator (47 × 7 in) and BD50F compressor, delivering cooling for 200 L boxes with 7 cu.ft. refrigeration or 2.3 cu.ft. freezer capacity. Its SP seawater-cooled system ensures high efficiency, silent operation, and reduced battery load.

Description
Ask a Question

Isotherm U200X066P12311AA – SP “2554” Water-Cooled Refrigeration Unit

The Isotherm SP “2554” is a self-pumping seawater-cooled refrigeration system designed for high efficiency and low electrical consumption. Equipped with a Large flat evaporator and the Secop BD50F compressor, it provides excellent cooling performance for refrigeration volumes up to 200 liters or freezing volumes up to 66 liters. The SP cooling method uses natural hull motion to circulate seawater, eliminating pumps and ensuring silent operation.

Main Features

Self-pumping seawater cooling (SP technology)
Large flat evaporator for stable, efficient cooling
Supports 7 cu.ft. fridge or 2.3 cu.ft. freezer capacity
Secop BD50F compressor, 12/24V DC
Very quiet – no pump or fan required
Click-on mounting bracket for simplified installation
Suitable for 200 L refrigeration / 66 L freezer volume

Technical Specifications

Parameter	Value
Part Number	U200X066P12311AA
Former Part Number	42554CB100000
Model	SP “2554”
Cooling Type	Self-pumping seawater cooling (SP)
Evaporator Type	Large Flat
Evaporator Dimensions	47 × 7 inches
Fridge Capacity	7 cu.ft. (200 L)
Freezer Capacity	2.3 cu.ft. (66 L)
Compressor	Secop BD50F
Compressor Dimensions	8 × 5 × 6 inches
Weight	29 lbs

The SP “2554” is an excellent choice for marine installations requiring efficient, quiet refrigeration with minimal power draw and high reliability in all sea conditions.
