ID
1303232
$ 1,173.51
1-2 weeks delivery time
-
+
The Isotemp 603023B000003 Basic 30L marine water heater offers an 8-gallon stainless-steel tank, a 115V/750W immersion heater and an integrated mixing valve. With both heating components positioned low in the tank and optimized inlet/outlet geometry to reduce cold-water mixing, it provides uniform heating and high-output performance for medium-size onboard hot-water systems.
- Description
- Ask a Question
-

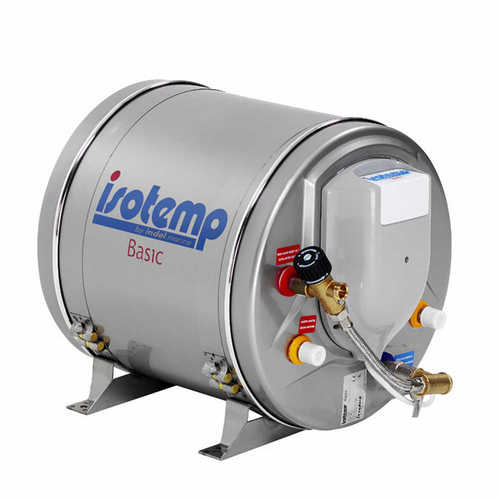

Isotemp 603023B000003 Basic 30L Water Heater 115V / 750W with Mixing Valve
The Isotemp 603023B000003 Basic 30L (8-gallon) stainless-steel marine water heater is part of the Isotemp Basic & Slim premium series. Designed for maximum heating efficiency, the 115V / 750W immersion heater and the engine-water heat exchanger are mounted at the lowest point of the tank to heat the full water volume evenly.
Specially engineered inlet and outlet designs minimize cold-water mixing, increasing the effective amount of hot water available. The heater is equipped with a thermostat-controlled mixing valve to stabilize outlet temperature and ensure safe operation in marine installations.Key Features
- 30-liter (8-gallon) stainless-steel marine water heater.
- 115V / 750W immersion heating element.
- Integrated thermostat-controlled mixing valve.
- Engine-water heat exchanger for auxiliary heating.
- Optimized inlet/outlet geometry to reduce temperature stratification.
- Robust brushed stainless-steel construction.
- Suitable for medium-size yachts and onboard technical spaces.
Technical Specifications
Part Number 603023B000003 Model Basic 30L Water Heater Capacity 30 L / 8 gallons Voltage / Power 115V AC / 750W Tank Material Brushed stainless steel Dimensions Length: 22 in
Outside Diameter (OD): 16 inUnit Weight 50 lbs Volume (Cubic Feet) 8 Special Instructions Supplied with thermostat-controlled mixing valve
Included in the Package
- Isotemp Basic 30L stainless-steel water heater
- 115V / 750W immersion heating element
- Engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and maintenance documentation
The Isotemp Basic 30L 115V model delivers high heating performance, large hot-water capacity and marine-grade durability, making it ideal for boats and yachts requiring dependable onboard water heating.
Documents
Isotemp Basic Slim Water Heater Manual Size: 6,6 MbIsotemp Basic Slim Water Heater Spare Parts List Size: 798,6 Kb -
