ID
1300307
$ 2,378.46
1-2 weeks delivery time
-
+

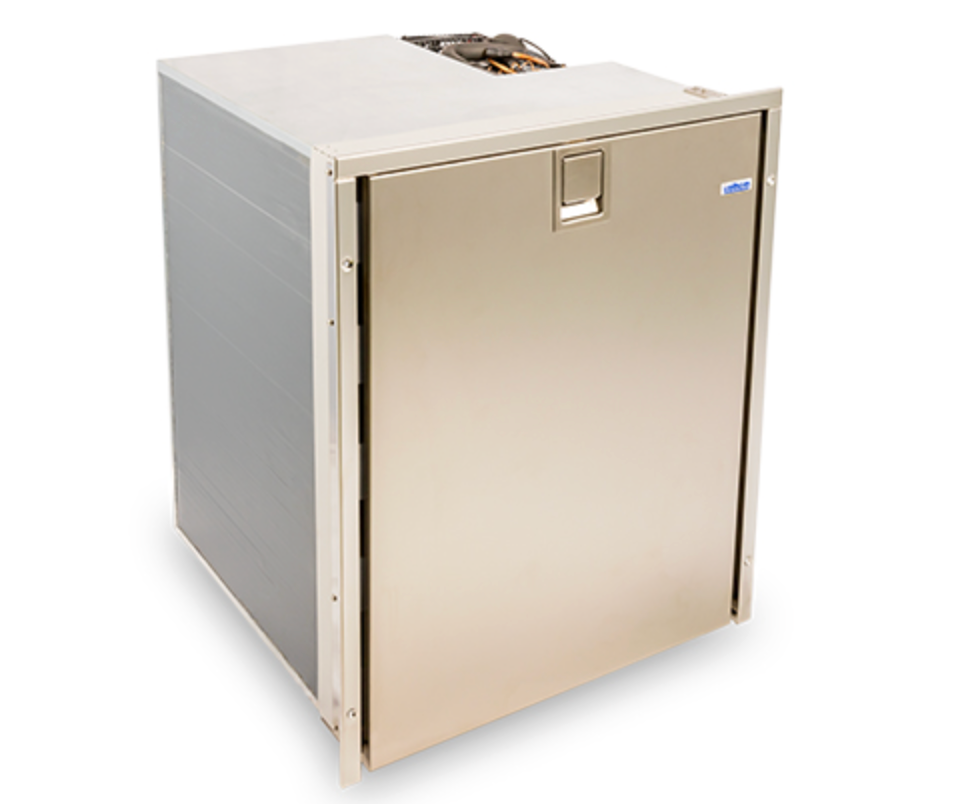

The Isotherm Cruise CR63 Inox Deep Freezer (12/24V LH) is a 63-liter stainless steel marine freezer with a left-hand door hinge and flush-mount installation frame. Featuring the same dimensions as the CR85 Inox refrigerator, it can be installed side by side. The CR63 Inox is equipped with two shelves, a lower bin, and a Secop BD35F compressor for reliable freezing down to -18°C.
- Description
- Ask a Question
-
Isotherm 1063BC1NK0000 - 12/24V LH Cruise CR63 Inox Deep Freezer
The Isotherm Cruise CR63 Inox Deep Freezer is a high-performance 63-liter marine freezer built with a premium stainless steel finish and designed for 12/24V DC operation. It features a left-hand door hinge and a flush-mount frame, making it ideal for professional marine galley installations. Sharing the same dimensions as the CR85 Inox refrigerator, this model can be mounted alongside it for a matching, space-efficient setup.
Technical Specifications
Model Isotherm Cruise CR63 Inox Deep Freezer Part Number 1063BC1NK0000 Voltage 12/24V DC (optional AC/DC kit available) Gross Volume 63 L (2.2 cu ft) Compressor Secop BD35F, corner-mounted Temperature Freezer compartment: -18°C Power Consumption Approx. 440 Wh/24h at +25°C ambient temperature Weight 23 kg Door Hinge Left-hand (reversible) Dimensions (H x W x D) 620 x 495 x 555 mm Finish Stainless steel (Inox Clean Touch) Mounting Flush-mounted with 3-sided stainless steel frame
Key Features
- Marine-grade stainless steel freezer with 63-liter capacity.
- Operates on 12/24V DC with optional AC/DC conversion kit.
- Same external dimensions as CR85 Inox fridge for side-by-side installation.
- Secop BD35F compressor ensures quiet, efficient performance.

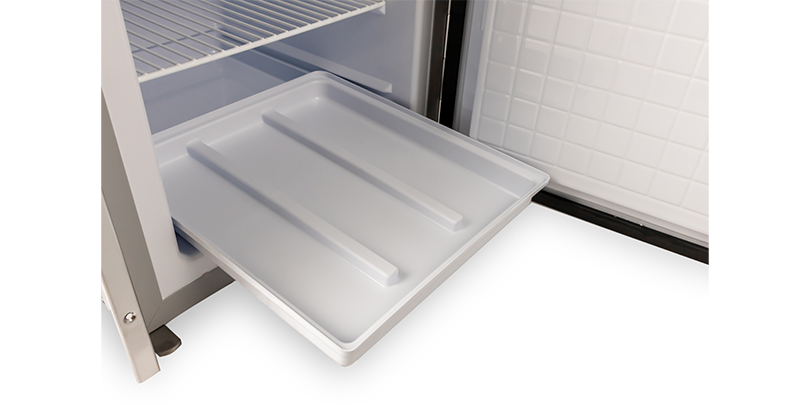

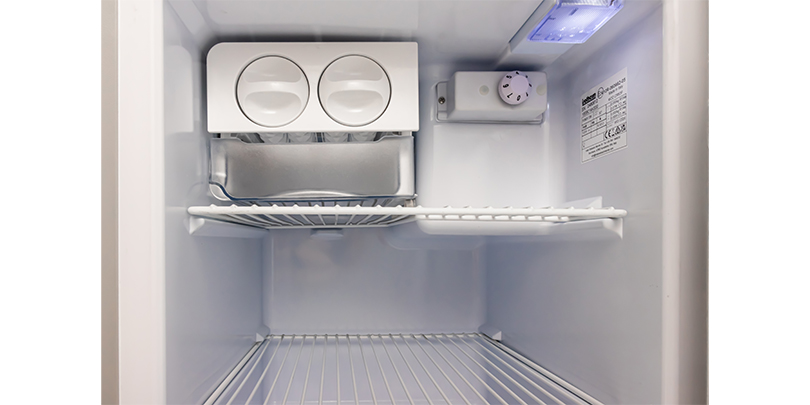

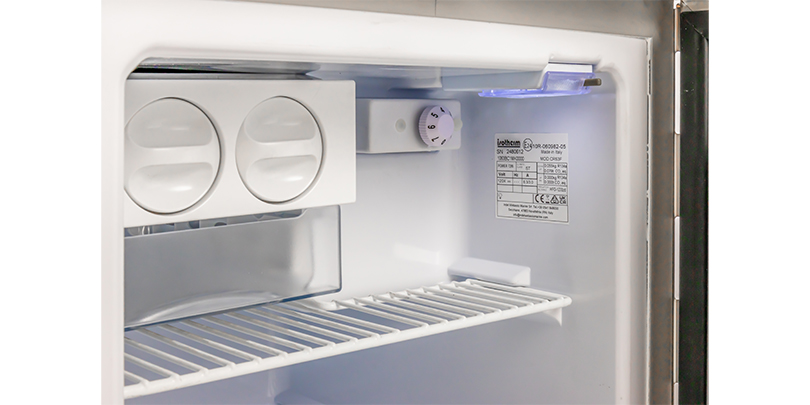

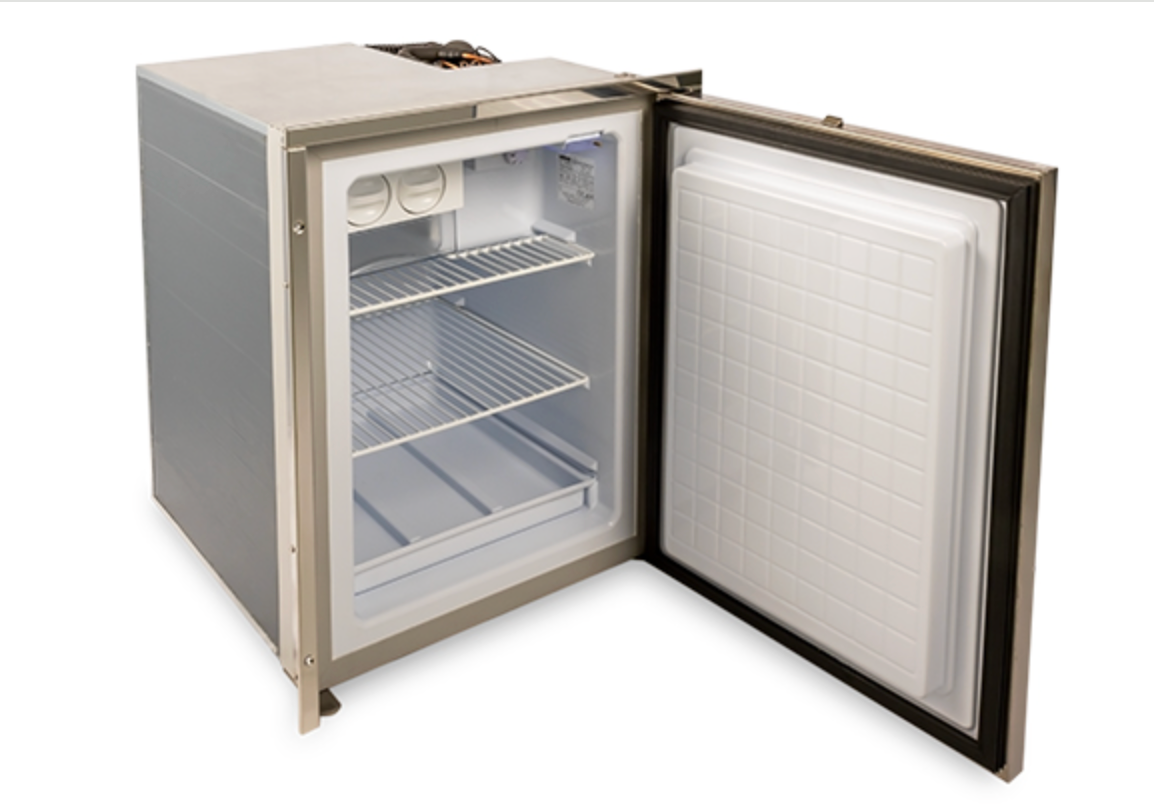

- Two adjustable shelves and a lower storage bin for practical organization.
- Integrated evaporator piping within the freezer walls for optimal cooling.
- Left-hand door hinge, reversible to right if needed.
- Complies with ISO 15502:2005, EN153:2006, and EN60335-1 standards.
Installation Notes
- Allow at least 20 mm clearance on both sides and 50 mm above the unit for ventilation.
- Depth increases slightly with the optional AC/DC kit.
- Dimensional tolerances: -2 / +4 mm (including feet).
Compatibility
Perfectly complements the Isotherm Cruise CR85 Inox refrigerator for symmetrical galley installations.
Documents
Isotherm Cruise CR63F Inox Freezer Spare Parts List Size: 144,7 KbIsotherm Cruise CR63F Inox Freezer Manual Size: 5,3 Mb -
