ID
1300306
$ 2,182.87
1-2 weeks delivery time
-
+
The Isotherm Cruise CR63 Classic Deep Freezer (12/24V LH) is a compact 63-liter marine freezer designed for efficient space utilization and reliable performance. Featuring a corner-mounted Secop BD35F compressor, two adjustable shelves, and a lower storage bin, it ensures deep-freeze operation at -18°C while fitting perfectly alongside the CR85 refrigerator.
- Description
- Ask a Question
-
Isotherm 1063BC1BA0000 - 12/24V LH Cruise CR63 Classic Deep Freezer

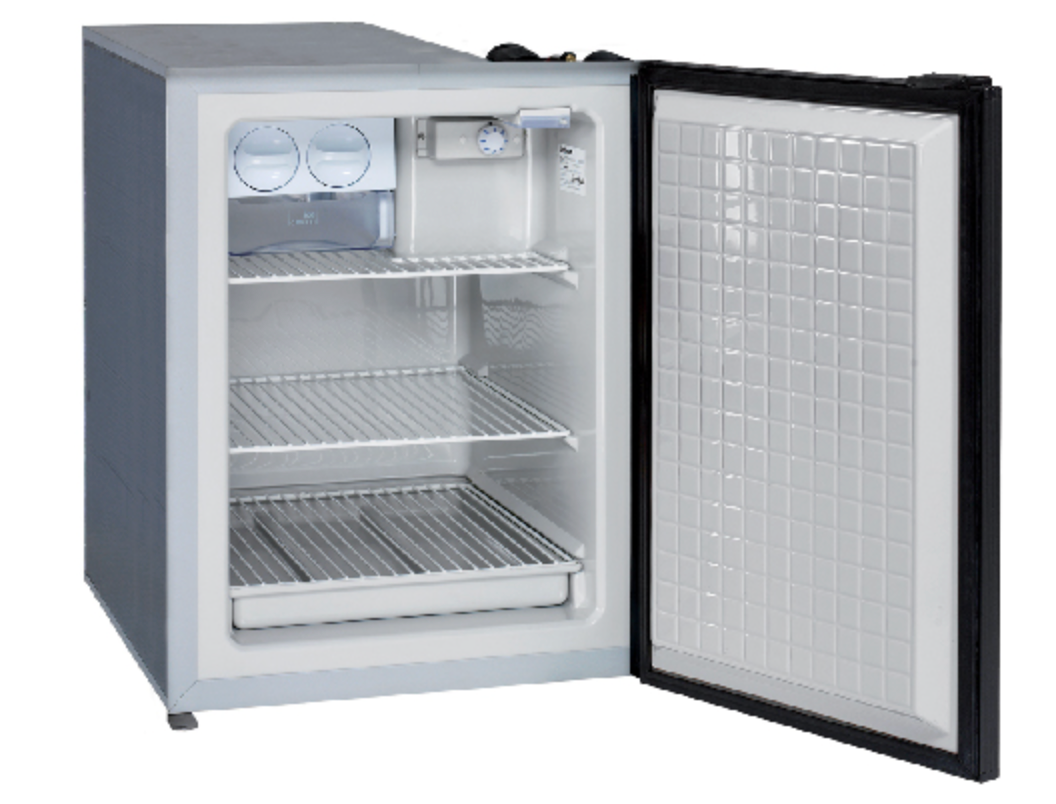

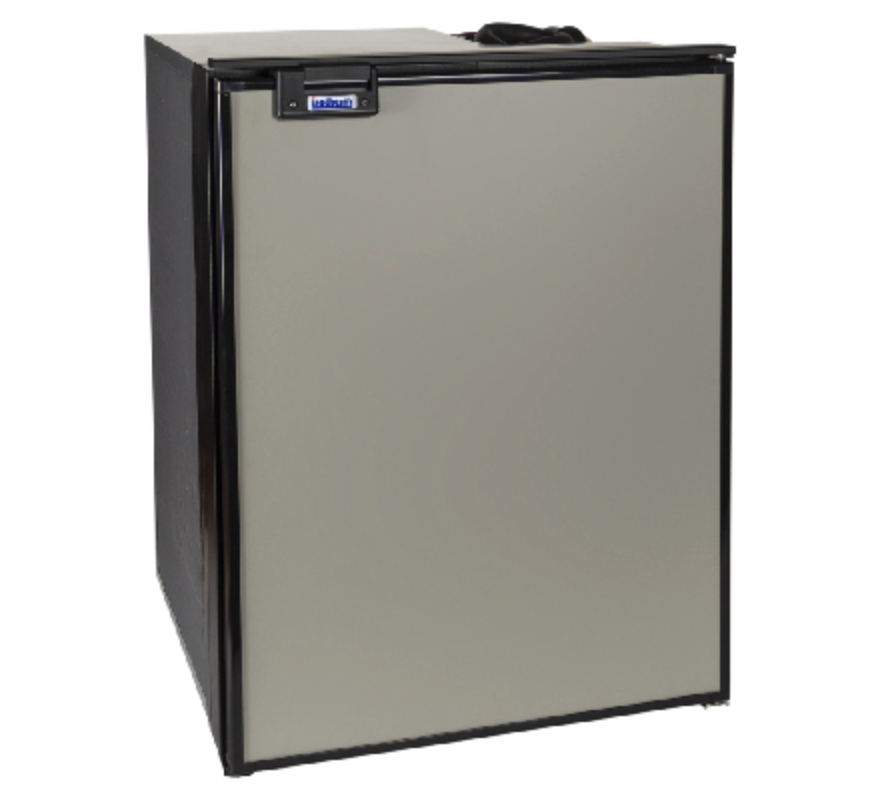

The Isotherm Cruise CR63 Classic Deep Freezer is a reliable 63-liter freezer designed for marine environments, operating on 12/24V DC. It shares the same external dimensions as the CR85 refrigerator, allowing side-by-side installation for an efficient galley layout. The unit includes two adjustable shelves, a lower bin, and an integrated wall-mounted evaporator system for optimal freezing performance.
Technical Specifications
Model Isotherm Cruise CR63 Classic Deep Freezer Part Number 1063BC1BA0000 Voltage 12/24V DC (optional AC/DC kit available) Gross Volume 63 L (2.2 cu ft) Compressor Secop BD35F, corner-mounted Temperature Freezer compartment: -18°C Power Consumption Approx. 440 Wh/24h at +25°C ambient Weight 24 kg (55 lbs) Door Hinge Left-hand (reversible) Dimensions (H x W x D) 620 x 477 x 515 mm (24.6 x 18.7 x 20.3 in) Flange Type 3-sided black flange
Key Features
- Compact 63-liter marine deep freezer operating on 12/24V DC.
- Same external dimensions as CR85 fridge – ideal for side-by-side installation.
- Secop BD35F compressor ensures quiet and efficient operation.
- Two shelves and a bottom bin for organized frozen storage.
- Integrated evaporator piping built into the freezer walls for optimal cooling.
- Reversible door (left hinge standard, convertible to right).
- Optional AC/DC kit available to extend installation flexibility.
Installation Notes
- Allow at least 20 mm clearance on each side and 50 mm above for proper ventilation.
- Depth increases with optional AC/DC conversion kit.
- Dimensional tolerances: -2 / +4 mm (including feet).
Compatibility
Designed for marine applications and perfectly complements Isotherm Cruise CR85 refrigerators for a coordinated installation.
-
