ID
1300308
$ 2,378.46
1-2 weeks delivery time
-
+
The Isotherm Cruise CR63 Inox Deep Freezer (12/24V RH) is a high-quality 63-liter stainless steel marine freezer featuring a durable Inox finish and flush-mount installation frame. With the same dimensions as the CR85 Inox fridge, it can be mounted side by side. It includes two shelves, a lower storage bin, and a Secop BD35F compressor for efficient freezing performance down to -18°C.
- Description
- Ask a Question
-

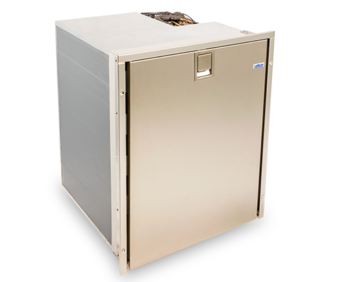

Isotherm 1063BC1MK0000 - 12/24V RH Cruise CR63 Inox Deep Freezer

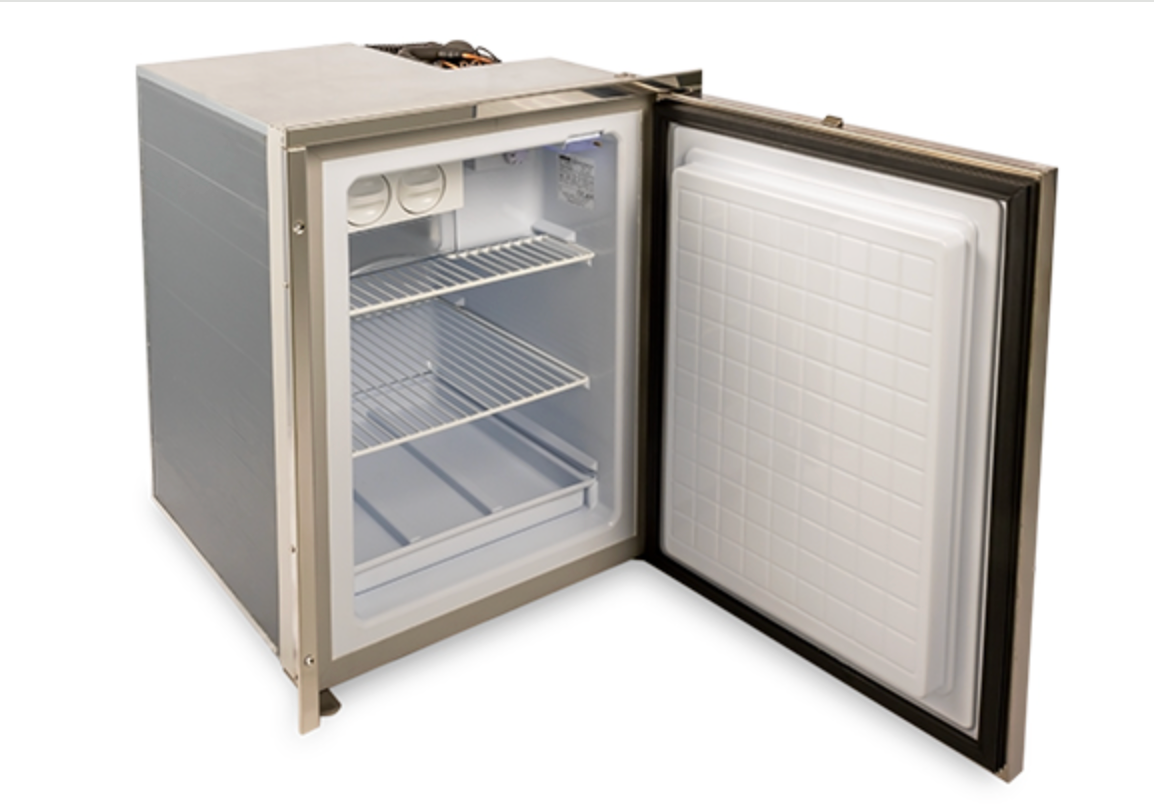

The Isotherm Cruise CR63 Inox Deep Freezer is a 63-liter marine-grade stainless steel freezer designed for performance and reliability at sea. Featuring a robust Inox Clean Touch finish and a flush-mount frame, this model offers efficient cooling and a professional appearance. It shares the same outer dimensions as the CR85 Inox refrigerator, allowing side-by-side installation for a coordinated galley layout.
Technical Specifications
Model Isotherm Cruise CR63 Inox Deep Freezer Part Number 1063BC1MK0000 Voltage 12/24V DC (optional AC/DC kit available) Gross Volume 63 L (2.2 cu ft) Compressor Secop BD35F, corner-mounted Temperature Freezer compartment: -18°C Power Consumption Approx. 440 Wh/24h at +25°C ambient temperature Weight 23 kg Door Hinge Right-hand (reversible) Dimensions (H x W x D) 620 x 495 x 555 mm Finish Stainless steel (Inox Clean Touch) Mounting Flush-mounted with 3-sided stainless steel frame
Key Features
- Marine-grade 63-liter stainless steel deep freezer operating on 12/24V DC.
- Same external dimensions as CR85 Inox fridge — perfect for side-by-side installation.
- High-efficiency Secop BD35F compressor ensures quiet and reliable performance.
- Integrated wall-mounted evaporator system for optimized cooling and energy efficiency.

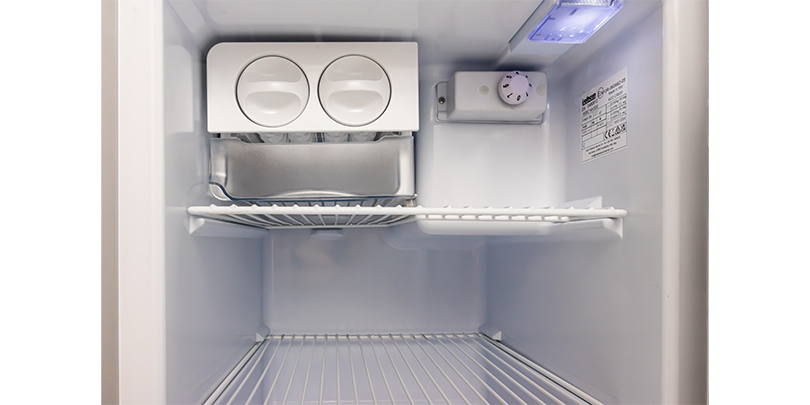

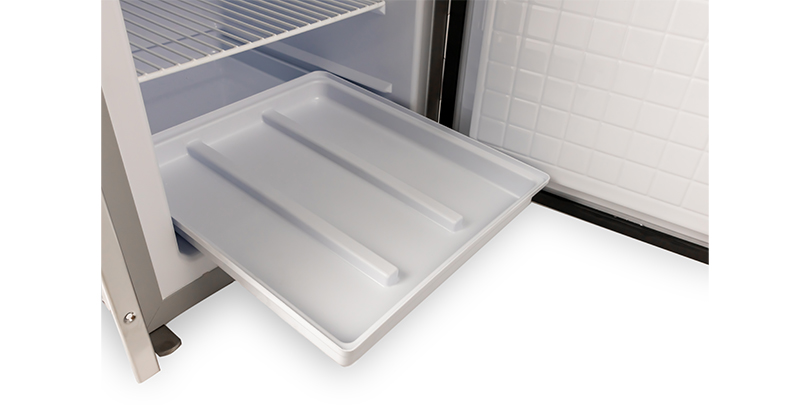

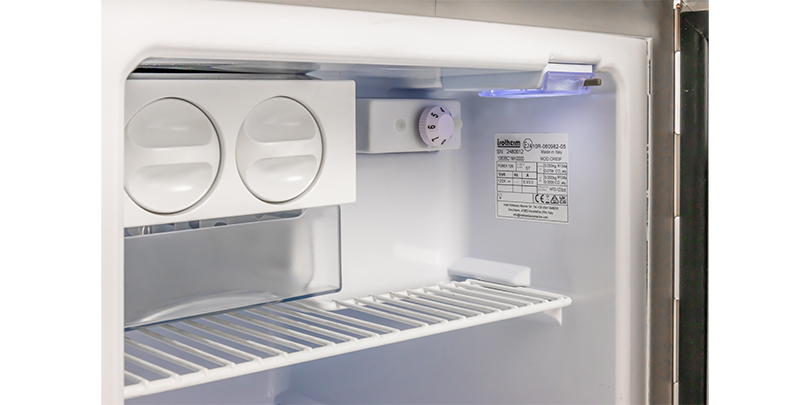

- Two adjustable shelves and a lower storage bin for organized frozen storage.
- Right-hand door hinge (convertible to left-hand).
- Optional AC/DC conversion kit available for flexible installation.
- Meets marine safety and performance standards EN60335-1, ISO 15502:2005, and EN153:2006.
Installation Notes
- Allow at least 20 mm clearance on each side and 50 mm above for proper ventilation.
- Depth increases slightly when using the optional AC/DC conversion kit.
- Dimensional tolerances: -2 / +4 mm (including feet).
Compatibility
Ideal for pairing with the Isotherm Cruise CR85 Inox refrigerator for seamless side-by-side installation in marine galley layouts.
Documents
Isotherm Cruise CR63F Inox Freezer Spare Parts List Size: 144,7 KbIsotherm Cruise CR63F Inox Freezer Manual Size: 5,3 Mb -
