The Yacht Devices EVC-A MC 12-Pin C5 adaptor is designed to connect the YDEG-04 Engine Gateway to Volvo Penta EVC-A MC C5 engine systems. With supported Engine Gateway firmware, up to eight Volvo Penta EVC-A MC 12-Pin C5 engines can be handled on a network, with engine speed, engine hours, engine temperature, boost pressure, keyswitch battery voltage, fuel rate, fuel tank level and engine warnings available on NMEA 2000 instruments.
- Description
- Ask a Question
-

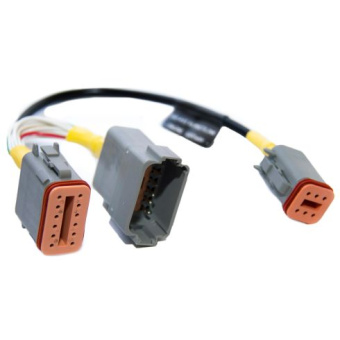

Yacht Devices EVC-A MC 12-Pin C5 Volvo Penta Engine Gateway Adaptor for YDEG-04
The Yacht Devices EVC-A MC 12-Pin C5 adaptor is designed for connecting the YDEG-04 Engine Gateway to Volvo Penta EVC-A MC C5 engine systems. It provides the required interface between the engine system and the gateway for transferring supported engine information to NMEA 2000 instruments.
With supported Engine Gateway firmware, the system can handle up to eight Volvo Penta EVC-A MC 12-Pin C5 engines on a network.
Supported Engine Data
- Engine speed
- Engine hours
- Engine temperature
- Boost pressure
- Keyswitch battery voltage
- Fuel rate
- Fuel tank level
- Engine warnings transmitted in J1939 messages with PGN 65226
Technical Specifications
Parameter Specification Product type Engine Gateway adaptor Engine system compatibility Volvo Penta EVC-A MC C5 Connector format 12-pin C5 Gateway compatibility YDEG-04 Engine Gateway Maximum supported engines Up to 8 engines on a network Data output NMEA 2000 instruments through YDEG-04 Engine warning messages J1939 PGN 65226
Application
- Connection of the YDEG-04 Engine Gateway to Volvo Penta EVC-A MC C5 systems
- Transfer of supported engine operating data to NMEA 2000 instruments
- Transfer of supported engine warning information
- Suitable for networks with up to eight supported EVC-A MC 12-Pin C5 engines
-
