The Yacht Devices EVC-A-M is an Engine Gateway adaptor cable with Y-connector designed to connect the YDEG-04 to the Fuel/Multisensor port of Volvo Penta EVC-A systems. The adaptor uses separate Device and Multisensor wiring, with CAN HIGH, CAN LOW, GND and VCC carried between the Multisensor connection and the gateway, while the white and brown wires of the 6-wire Multisensor Y-connector are not connected to the Device. With supported Engine Gateway firmware, up to eight Volvo Penta EVC-A engines can be handled on a network, with engine speed, engine hours, engine temperature, boost pressure, keyswitch battery voltage, fuel rate, fuel tank level and engine warnings available on NMEA 2000 instruments.
- Description
- Ask a Question
-
Yacht Devices EVC-A-M Volvo Penta EVC-A Fuel/Multisensor Engine Gateway Adaptor Cable with Y-Connector for YDEG-04

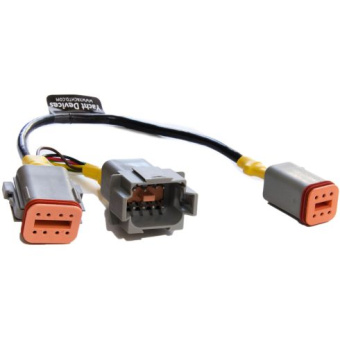

The Yacht Devices EVC-A-M is an Engine Gateway adaptor cable designed for connecting the YDEG-04 Engine Gateway to the Fuel/Multisensor port of a Volvo Penta EVC-A system. The cable incorporates a Y-connector arrangement that retains the Multisensor connection while providing the required interface to the Engine Gateway.
The adaptor includes a 4-wire cable to the Device and a 6-wire Multisensor Y-connector cable. According to the supplied wiring diagram, CAN HIGH, CAN LOW, GND and VCC are connected between the Multisensor side and the YDEG-04, while the white and brown wires of the Multisensor Y-connector are not connected to the Device.
Supported Engine Data
- Engine speed
- Engine hours
- Engine temperature
- Boost pressure
- Keyswitch battery voltage
- Fuel rate
- Fuel tank level
- Engine warnings transmitted in J1939 messages with PGN 65226
Technical Specifications
Parameter Specification Product type Engine Gateway Fuel/Multisensor adaptor cable Model EVC-A-M Engine system compatibility Volvo Penta EVC-A Gateway compatibility YDEG-04 Engine Gateway Connection type Fuel/Multisensor port with Y-connector Cable to Device 4 wires Multisensor Y-connector cable 6 wires Maximum supported engines Up to 8 Volvo Penta EVC-A engines on a network Data output NMEA 2000 instruments through YDEG-04 Engine warning messages J1939 PGN 65226
Multisensor to Device Wiring
Signal Wire Color Multisensor Pin Device Pin CAN HIGH Yellow 5 3 CAN LOW Blue or Green 2 1 GND Black 4 4 VCC Red 6 6
Connector Arrangement
- Connector with Device wiring
- Female connector with Multisensor wiring
- Male connector with Multisensor wiring
- Multisensor Y-connector configuration
- White and brown wires of the 6-wire Multisensor cable are not connected to the Device
Application
The EVC-A-M provides the physical connection between the Volvo Penta EVC-A Fuel/Multisensor interface and the YDEG-04 Engine Gateway. With supported firmware, the gateway can handle data from up to eight Volvo Penta EVC-A engines on a network and make supported operating parameters and warning information available to NMEA 2000 instruments.
-
