The VDO 360-081-032-025C low-range pressure sensing unit provides stable, accurate measurement from 0 to 2 bar for engine monitoring and other low-pressure circuits, including turbo boost pressure applications. Designed with insulation and retention features for durability, it uses a 1/8-27 NPTF thread for straightforward installation and outputs a 10–184 Ohm analog signal via a dual-pole insulated return, operating on 6–24 V DC with no built-in warning contact (optional makepoint switch VDO A2C59510886).
- Description
- Ask a Question
-

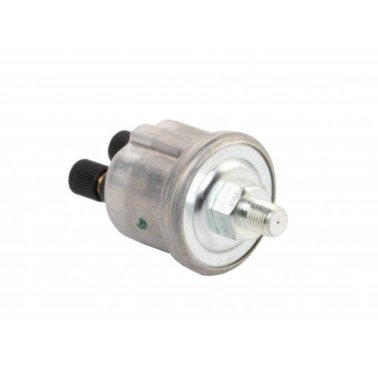

Low-Range Pressure Sensing Unit 0-2 Bar, 1/8-27 NPTF
Built for dependable low-pressure monitoring, the VDO 360-081-032-025C pressure sender measures from 0–2 bar and supports accurate analog feedback for VDO engine monitoring. Its insulated, retained construction is aimed at long service life in demanding environments, while the 1/8-27 NPTF male thread helps ensure a secure fit in a wide range of installations.
Compatibility
- VDO engine monitoring systems
- Turbo boost pressure measurement (low-pressure range)
- Oil pressure measurement (oil as pressure medium)
- Fuel pressure measurement (fuel as pressure medium)
- Air pressure measurement (air as pressure medium)
Technical Specifications

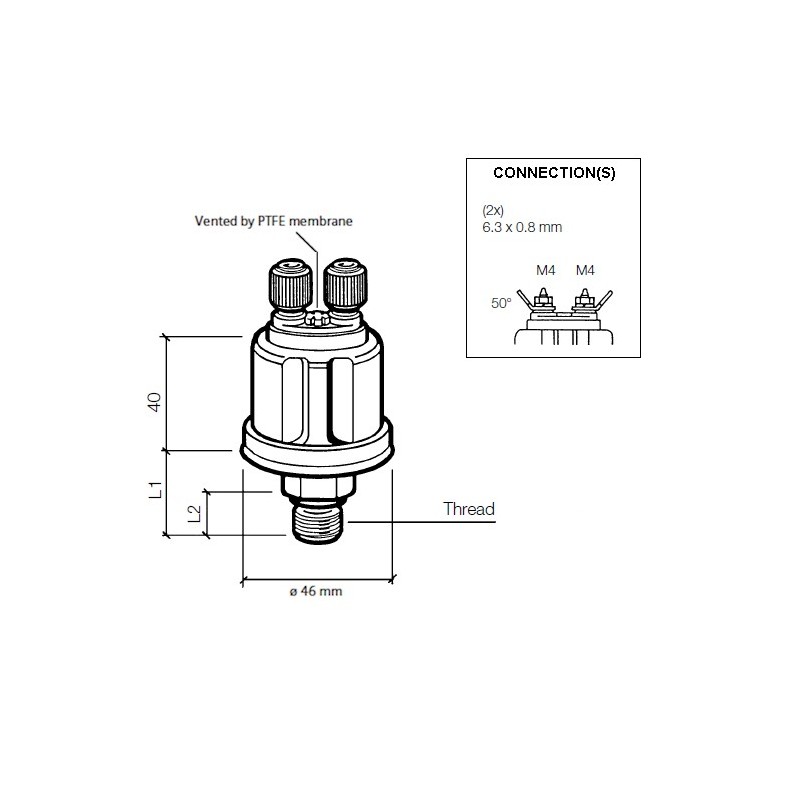

Part Number 360-081-032-025C Pressure Measuring Range 0–2 Bar; 0–29 PSI; 0–200 KPa Maximum Pressure 30 Bar during 2 seconds Thread 1/8-27 NPTF (male) Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Installation Torque 30 Nm Operating Temperature -25 °C to +100 °C Pressure Media Oil; Fuel; Air Operating Voltage 6–24 V DC Resistance Range 10–184 Ohm Sensor Signal Dual-pole insulated return Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Connector M4 AMP male 6.3 x 0.8 mm, 50° Type of Connection C EAN Code 4103590691231 HS Code 90269000 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 032 025C; 360/81/32/25C
Product Details
- Brand: VDO
- Component Type: Pressure sender
- Signal Type: Analog (10–184 Ohm)
- Functionality: Turbo boost pressure
- Design Notes: Insulation and retention features for enhanced durability
- Packaging: VDO sensor retail package
Features
- Optimized 0–2 bar measuring range for stable readings in low-pressure systems
- Dual-pole insulated return signal design suited to reliable gauge and monitoring inputs
- Handles oil, fuel, and air pressure media for broad monitoring use
- 1/8-27 NPTF thread supports secure installation in compatible ports
- Optional makepoint switch (VDO A2C59510886) enables add-on warning functionality where required
-
