ID
1129718
$ 129.34
1-2 weeks delivery time
-
+

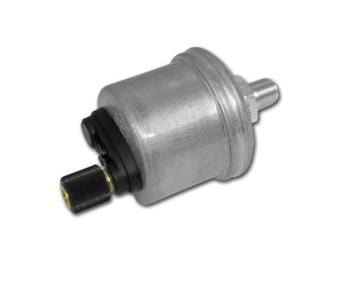

The VDO 360-081-037-006C pressure sender is an engine-monitoring sensor designed to provide stable, accurate pressure feedback from oil, fuel, or air circuits across a 0 to 16 bar measuring range. Built around a single-pole, common-ground signal with a 10–184 Ohm output and 6–24 V DC operation, it supports dependable gauge and monitoring-system readings, while the M14 x 1.5 male thread and M4 hex nut electrical connection simplify secure installation in demanding applications.
- Description
- Ask a Question
-
VDO Pressure Sender for Engine Monitoring 0 to 16 Bar
The VDO 360-081-037-006C is a compact pressure sender for VDO engine monitoring, built to convert system pressure into a stable analog signal for instruments and monitoring electronics. With a 0 to 16 bar measuring range and suitability for oil, fuel, and air pressure media, it is a dependable choice for engine oil pressure and other pressure-feedback circuits where consistent readings matter.
Compatibility
- VDO Engine Monitoring (Engine Oil Pressure)
Product Details
- Brand: VDO
- Part Number: 360-081-037-006C
- Component Type: Pressure Sender
- Functionality: Engine oil pressure
- Pressure Media: Oil
- Pressure Media: Fuel
- Pressure Media: Air
- Country of Origin: Germany
Features
- Accurate analog pressure feedback for gauges and monitoring systems
- Wide electrical compatibility via 6–24 V DC operation
- Single-pole common-ground sensor signal for straightforward integration
- Built for robust installations with specified tightening torque guidance
- Optional add-on capability via VDO A2C59510886 Makepoint Switch
Technical Specifications
Pressure Measuring Range 0 to 16 bar
0 to 232 PSI
0 to 1600 KPaMaximum Pressure 40 bar (during 2 seconds) Thread M14 x 1.5 male Length Thread Plus Nut (L1) 20.5 mm Thread Length (L2) 12 mm Tightening Torque 60 Nm Operating Temperature -25 °C to +100 °C Operating Voltage 6–24 V DC Resistor Range 10–184 Ohm Pressure Sensor Signal Single-pole common ground Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Pressure Sender Connector M4 hex nut Type of Connection B HS Code 90269000 EAN Code 4103590691286 Weight 0.12 kg Alternative Notation 360 081 037 006C
360/81/37/6CReference Catalog VDO 2014 Vehicle Electronics Catalog, page 121–122 Reference Table VDO Pressure Sender Datasheet, table 5
Retail Package
- VDO 360-081-037-006C pressure sender
- Delivered without connecting hardware
-
