The VDO 360-081-034-002C oil pressure sender is a precision monitoring sensor for VDO engine monitoring systems, measuring 0 to 5 bar while providing a built-in warning contact for early low-pressure alerts. Designed for automotive, industrial, and marine use, it supports oil, fuel, and air pressure circuits and installs securely via an M14 x 1.5 thread. With a 10–184 Ohm analog output, 6–24 V DC operating range, and short-duration 30 bar overpressure tolerance, it helps protect engines and equipment by keeping pressure information clear, stable, and actionable.
- Description
- Ask a Question
-
VDO Oil Pressure Sender 0–5 Bar With M14 x 1.5 Thread

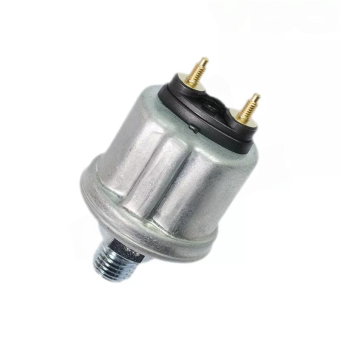

The VDO 360-081-034-002C is a pressure sender engineered for accurate engine oil pressure monitoring as part of VDO Engine Monitoring instrumentation. It measures from 0 to 5 bar and includes an integrated warning contact that closes with falling pressure, helping drivers and operators react quickly to lubrication issues. Built for versatile use, it is suitable for automotive, industrial, and marine installations and can be used with oil, fuel, and air pressure systems.
Compatibility
- Automotive applications
- Industrial applications
- Marine applications
- Oil pressure systems
- Fuel pressure systems
- Air pressure systems
Product Details
- Brand: VDO
- Part Number: 360-081-034-002C
- Component Type: Pressure Sender
- Primary Function: Engine oil pressure monitoring
- Signal Type: Analog (10–184 Ohm), single-pole common ground
- Packaging: VDO Sensor Retail Package
Features
- Accurate 0–5 bar measurement for dependable engine and system pressure tracking
- Integrated warning contact provides early low-pressure indication
- Designed for broad system use across oil, fuel, and air pressure circuits
- M14 x 1.5 threaded installation for a secure, service-friendly fit
- Built to withstand short pressure spikes up to 30 bar (up to 2 seconds)
- Suitable for 6–24 V DC electrical systems commonly used in vehicles and equipment
Technical Specifications
Pressure Range 0–5 Bar (0–72.5 PSI / 0–500 KPa) Maximum Pressure 30 Bar (up to 2 seconds) Thread M14 x 1.5 (Male) Torque 60 Nm Thread Length 12 mm Length of Thread + Nut 20.5 mm Operating Temperature -25°C to +100°C Pressure Media Oil, Fuel, Air Operating Voltage 6–24 V DC Signal Output 10–184 Ohm Pressure Sensor Signal Single-pole common ground Warning Contact Setpoint 0.25 Bar ± 0.15 Bar Warning Contact Switching Capacity Maximum 5 Watt (non-inductive) Warning Contact Action Closes with falling pressure Pressure Sender Connector M4 Hexagonal Nut Warning Contact Connector M5 Hexagonal Nut Type of Connection L EAN Code 4103590691262 HS Code 90269000 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 034 002C / 360/81/34/2C
Retail Package
- VDO 360-081-034-002C pressure sender
- Sensors are delivered without connecting material unless otherwise noted
-
