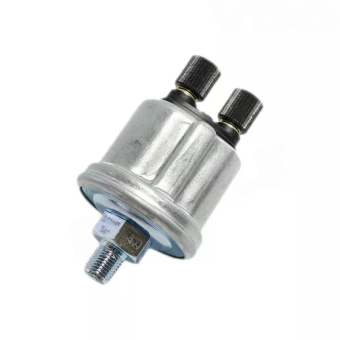

VDO 360-081-030-017C - Pressure Sender 0-10 Bar - M10

VDO 360-081-030-017C - Pressure Sender 0-10 Bar - M10

The VDO 360-081-030-017C Pressure Sender is a high-quality sensor designed for monitoring pressure in automotive, industrial, and engine applications. It has a pressure measurement range of 0 to 10 Bar (0 to 145 PSI or 0 to 1000 KPa) and is ideal for use with oil, fuel, and air pressure systems. Featuring an M10 x 1 tapered short thread, this pressure sender ensures a secure and reliable connection. The device includes a warning contact that triggers at 0.90 Bar ± 0.15 Bar, providing critical feedback when pressure falls below the set threshold. With a wide operating temperature range of -25 °C to +100 °C, this sensor is built for harsh conditions. The VDO Pressure Sender operates within a voltage range of 6-24V DC and offers an analog output signal with a resistance range of 10 - 184 Ohm, ensuring accurate and responsive pressure readings.

Key Features:

• Pressure Range: 0 to 10 Bar (0 - 145 PSI or 0 - 1000 KPa)
• Maximum Pressure: 30 Bar (for up to 2 seconds)
• Warning Contact: Triggers at 0.90 Bar ± 0.15 Bar for early detection of low pressure
• Thread Type: M10 x 1 tapered short for secure and reliable installation
• Resistor Range: 10 - 184 Ohm, providing precise sensor feedback
• Operating Voltage: 6 - 24 V DC for compatibility with a wide range of systems
• Wide Operating Temperature: -25 °C to +100 °C, suitable for extreme environments
• Pressure Medium Compatibility: Oil, Fuel, and Air for versatile applications
• Warning Contact Switching Capacity: Maximum 5 Watt non-inductive for safe operation

Specifications:

• Model: VDO 360-081-030-017C
• Pressure Range: 0 - 10 Bar (0 - 145 PSI or 0 - 1000 KPa)
• Maximum Pressure: 30 Bar for 2 seconds
• Thread: M10 x 1 Male tapered short
• Length Thread + Nut (L1): 19.5 mm
• Thread Length (L2): 11 mm
• Torque: 30 Nm
• Operating Temperature: -25 °C to +100 °C
• Pressure Medium: Oil, Fuel, and Air
• Electrical Features:
• Operating Voltage: 6 - 24 V DC
• Resistor Range: 10 - 184 Ohm
• Sensor Signal: Single-Pole common ground
• Warning Contact: 0.90 Bar ± 0.15 Bar
• Warning Contact Switching Capacity: Maximum 5 Watt non-inductive
• Warning Contact Features: Closes with falling pressure
• Pressure Sender Connector: M4 Plastic knurled nut
• Warning Contact Connector: M4 Plastic knurled nut
• Packaging: VDO Sensor retail package
• Country of Origin: Germany
• Functionality: Engine oil pressure monitoring
• Connector Type: M4 Plastic knurled nut
• Communication: Analog

Compatibility and Application:

• Ideal for automotive, marine, and industrial applications for pressure monitoring
• Suitable for use in engine oil, fuel, and air pressure systems
• Perfect for integration into VDO engine monitoring systems
• Compatible with systems operating on 6-24V DC

Benefits:

• Provides accurate and reliable pressure readings for better system monitoring
• Warning contact alerts provide early detection of pressure drops, improving system safety
• Wide operating temperature range makes it ideal for use in diverse environments
• Compatible with oil, fuel, and air pressure mediums, offering versatility in different applications
• Durable and reliable design with an M10 x 1 tapered short thread for secure installation
• Analog output signal ensures accurate feedback for engine and system monitoring
