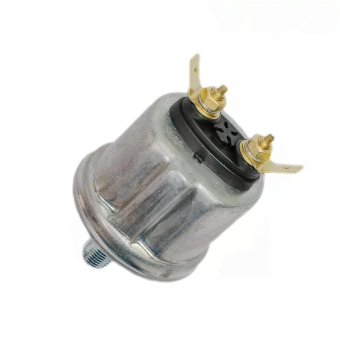

The VDO 360-081-030-025C pressure sender is a high-accuracy analog sensor for monitoring 0 to 5 bar in oil, fuel, and air circuits within automotive and industrial engine systems. Built with an M18 x 1.5 thread for secure installation, it outputs a 10–184 Ohm signal for seamless gauge integration and adds an early-alert warning contact that switches at 0.40 bar ± 0.20 bar to help protect engines and equipment from harmful pressure drops.
- Description
- Ask a Question
-
0–5 Bar Analog Pressure Sender With M18 x 1.5 Thread and Warning Switch
The VDO 360-081-030-025C is a robust pressure sender engineered for dependable pressure monitoring in oil, fuel, and air systems. It provides an analog 10–184 Ohm signal for engine monitoring instruments and includes an integrated warning contact that closes as pressure falls, giving an early indication of low-pressure conditions.
Compatibility
- Automotive engine monitoring systems
- Industrial engine monitoring systems
- Oil pressure measurement applications
- Fuel pressure measurement applications
- Air pressure measurement applications
- Single-pole common ground sensor circuits
Product Details
- Brand: VDO
- Part Number: 360-081-030-025C
- Component Type: Pressure Sender with Warning Contact
- Functionality: Engine oil pressure monitoring
- Pressure Media: Oil, Fuel, Air
Features
- Measures pressure from 0 to 5 bar for accurate system monitoring
- Built-in warning contact supports early alerts when pressure drops
- Analog resistance output (10–184 Ohm) for straightforward gauge integration
- Wide supply range (6–24 V DC) for flexible installation across platforms
- Designed for durable performance in demanding automotive and industrial environments
Technical Specifications
Pressure Range 0–5 Bar (0–72.5 PSI / 0–500 KPa) Maximum Pressure 30 Bar (up to 2 seconds) Thread M18 x 1.5 Male Thread Length + Nut (L1) 20.5 mm Thread Length (L2) 12 mm Tightening Torque 100 Nm Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Signal Output Analog (10–184 Ohm) Sensor Signal Single-Pole Common Ground Warning Contact Switching Point 0.40 Bar ± 0.20 Bar Warning Contact Behavior Closes with falling pressure Warning Contact Switching Capacity Maximum 5 Watt (non-inductive) Pressure Sender Connector M4 AMP Male 6.3 x 0.8 mm (50°) Warning Contact Connector M4 AMP Male 6.3 x 0.8 mm (50°) Material High-grade corrosion-resistant materials EAN Code 4103590949608 HS Code 90269000 Weight 0.12 kg Packaging VDO Sensor Retail Package Country of Origin Germany Compliance ISO 9001 certified manufacturing Alternative Notation 360 081 030 025C / 360/81/30/25C -
