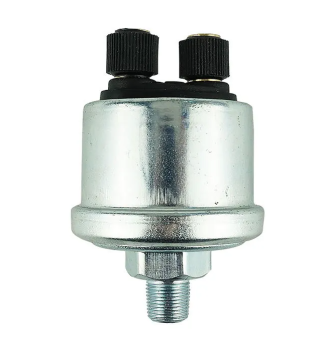

VDO 360-081-030-010C - Pressure Sender 0-5 Bar - 1/8-27 NPTF

SKU: EX 360081030010C

€ 111,50

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The VDO 360-081-030-010C Pressure Sender is a high-precision sensor designed for monitoring pressures from 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa). It features a durable 1/8 - 27 NPTF thread and a resistance range of 10 - 184 Ohm, ensuring reliable signal output and compatibility with oil, fuel, and air systems. With a built-in warning contact triggering at 1.40 Bar ± 0.15 Bar and a switching capacity of 5 Watts, it enhances safety in critical applications. The sensor operates in temperatures from -25°C to +100°C and can withstand short-term pressures of up to 30 Bar. Compact with a total length of 19.5 mm and a torque specification of 30 Nm, it integrates seamlessly into automotive, marine, and industrial systems. Supporting 6 - 24 V DC systems, this pressure sender provides durable, accurate performance for demanding environments.

Description
Ask a Question

VDO 360-081-030-010C - Pressure Sender 0-5 Bar - 1/8-27 NPTF

Key Features:
- Pressure range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa) for accurate pressure monitoring
- Thread: 1/8 - 27 NPTF for secure and reliable installation
- Sender resistance range: 10 - 184 Ohm for precise signal output
- Single-pole common ground sensor signal for stable electrical performance
- Built-in warning contact: 1.40 Bar ± 0.15 Bar for enhanced safety
- Warning contact switching capacity: Maximum 5 Watt (non-inductive)
- Maximum pressure: 30 Bar for up to 2 seconds, ensuring durability in high-pressure conditions
- Operating temperature: -25°C to +100°C for reliable operation in extreme environments
- Compatible with oil, fuel, and air pressure systems
- Thread length (L2): 11 mm; total thread and nut length (L1): 19.5 mm
- Torque specification: 30 Nm for proper and secure mounting
- Connectors: M4 plastic knurled nut for both the pressure sender and warning contact
Specifications:
- Pressure Measuring Range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa)
- Maximum Pressure: 30 Bar (2 seconds)
- Thread: 1/8 - 27 NPTF
- Total Length Thread + Nut (L1): 19.5 mm
- Thread Length (L2): 11 mm
- Torque: 30 Nm
- Operating Temperature Range: -25°C to +100°C
- Resistor Range: 10 - 184 Ohm
- Signal Type: Single-pole common ground
- Operating Voltage: 6 - 24 V DC
- Warning Contact: 1.40 Bar ± 0.15 Bar
- Warning Contact Switching Capacity: Maximum 5 Watt (non-inductive)
- Warning Contact Features: Closes with falling pressure
- Connectors: M4 Plastic knurled nut for both pressure sender and warning contact
- Compatible Mediums: Oil, fuel, air
Compatibility and Application:
- Designed for precise pressure monitoring in oil, fuel, and air systems
- Compatible with automotive, marine, and industrial applications
- Ideal for engines, transmissions, and hydraulic systems requiring accurate pressure readings
- Seamless integration with systems operating on 6 - 24 V DC voltage
- Optimized for extreme pressure and temperature environments
Benefits:
- Accurate pressure monitoring with a range of 0 to 5 Bar
- Durable design capable of withstanding up to 30 Bar for short durations
- Built-in warning contact enhances safety with a 1.40 Bar ± 0.15 Bar trigger point
- Secure installation with 1/8 - 27 NPTF thread and 30 Nm torque
- Reliable signal transmission with a resistance range of 10 - 184 Ohm
- Compact and robust design ensures long-lasting performance
- Supports multiple pressure-sensitive mediums, offering versatile applications
