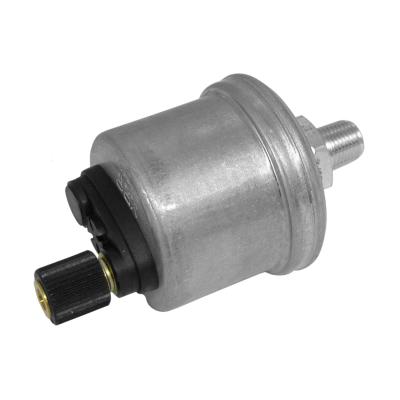

VDO 360-081-029-012C - Pressure Sender 0-10 Bar - 1/8-27 NPTF

SKU: EX 360081029012C

€ 70,84

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The VDO 360-081-029-012C Pressure Sender is a precision-engineered sensor designed for accurate pressure measurement across a range of 0 to 10 Bar (0 - 145 PSI, 0 - 1000 KPa). It features a durable 1/8 - 27 NPTF thread, ensuring secure installation in a variety of applications. With a resistance range of 10 - 184 Ohm, it delivers precise signal output for stable performance in oil, fuel, and air systems. Built to withstand demanding conditions, the sender operates in temperatures from -25°C to +100°C and can handle a maximum pressure of 30 Bar for short durations. Its compact design, with a total thread and nut length of 19.5 mm and a torque specification of 30 Nm, makes it easy to install even in tight spaces. Compatible with systems operating on 6 - 24 V DC, it integrates seamlessly with automotive, marine, and industrial setups, offering optional warning contact functionality for enhanced safety and adaptability. This robust sender ensures long-lasting and dependable performance for critical pressure-sensitive applications.

Description
Ask a Question

VDO 360-081-029-012C - Pressure Sender 0-10 Bar - 1/8-27 NPTF

Key Features:
- Pressure range: 0 to 10 Bar (0 - 145 PSI, 0 - 1000 KPa) for accurate monitoring
- Thread: 1/8 - 27 NPTF for secure and reliable installation
- Sender resistance range: 10 - 184 Ohm for precise signal output
- Single-pole common ground sensor signal for stable electrical performance
- Maximum pressure: 30 Bar for up to 2 seconds, ensuring durability in high-pressure conditions
- Operating temperature: -25°C to +100°C for reliable performance in extreme environments
- Compatible with oil, fuel, and air pressure systems

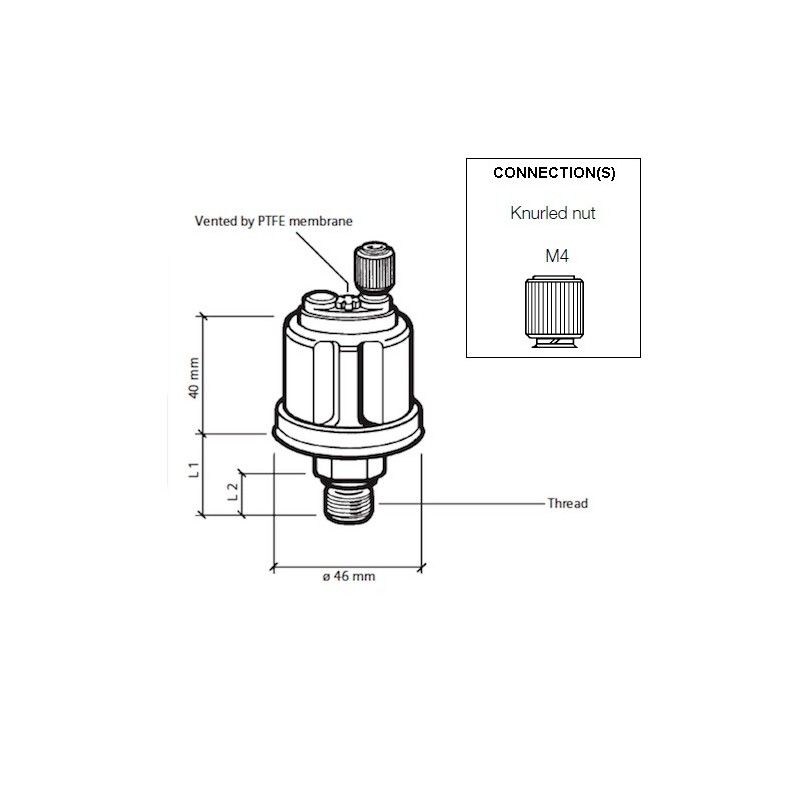

- Thread length (L2): 11 mm; total thread and nut length (L1): 19.5 mm
- Torque specification: 30 Nm for proper mounting
- Connector: M4 plastic knurled nut for secure and easy integration
- No built-in warning contact; optional VDO A2C59510886 Makepoint Switch available
Specifications:
- Pressure Measuring Range: 0 to 10 Bar (0 - 145 PSI, 0 - 1000 KPa)
- Maximum Pressure: 30 Bar (2 seconds)
- Thread: 1/8 - 27 NPTF
- Total Length Thread + Nut (L1): 19.5 mm
- Thread Length (L2): 11 mm
- Torque: 30 Nm
- Operating Temperature Range: -25°C to +100°C
- Resistor Range: 10 - 184 Ohm
- Signal Type: Single-pole common ground
- Operating Voltage: 6 - 24 V DC
- Warning Contact: None (Optional: VDO A2C59510886 Makepoint Switch)
- Connector: M4 Plastic knurled nut
- Compatible Mediums: Oil, fuel, air
Compatibility and Application:
- Designed for precise pressure monitoring in oil, fuel, and air systems
- Compatible with automotive, marine, and industrial applications
- Ideal for engines, transmissions, and hydraulic systems requiring accurate pressure readings
- Works seamlessly with systems operating on 6 - 24 V DC voltage
- Optimized for extreme pressure and temperature environments
Benefits:
- Accurate pressure monitoring with a range of 0 to 10 Bar
- Durable design capable of withstanding up to 30 Bar for short durations
- Secure installation with 1/8 - 27 NPTF thread and 30 Nm torque
- Reliable signal transmission with a resistance range of 10 - 184 Ohm
- Compact and robust design ensures long-lasting performance
- Supports multiple pressure-sensitive mediums, offering versatile applications
- Optional warning contact functionality enhances safety and adaptability
