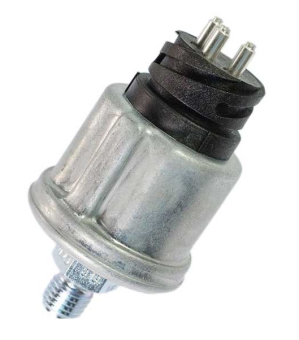

VDO 360-081-064-004C - Pressure Sender 0-10 Bar - M18

VDO 360-081-064-004C - Pressure Sender 0-10 Bar - M18

The VDO 360-081-064-004C Pressure Sender is designed to provide accurate and reliable pressure readings in a wide range of applications, including engine monitoring and pressure measurement systems. This sender is ideal for use with oil, fuel, and air pressure mediums, offering a pressure range from 0 to 10 Bar (0 - 145 PSI, 0 - 1000 KPa). With its M18 x 1.5 threaded connection and robust construction, it ensures precise measurements and reliable performance in demanding environments. The warning contact feature provides an alert when pressure falls below 0.60 Bar, allowing for timely action. The sender is compatible with VDO engine monitoring systems and comes with Bosch push-on connectors for easy installation.

Key Features

• Pressure range: 0 to 10 Bar (0 - 145 PSI, 0 - 1000 KPa)
• Maximum pressure: 30 Bar for up to 2 seconds
• Warning contact: 0.60 Bar ± 0.30 Bar, closes with falling pressure
• Operating voltage: 6 - 24 V DC
• Resistor range: 10 - 184 Ohm
• Dual-pole insulated return signal for accurate pressure reading
• Easy installation with Bosch push-on connectors for both sensor and warning contact
• Compatible with oil, fuel, and air pressure mediums
• Operating temperature range: -25°C to +100°C, ensuring reliable performance in harsh environments
• Durable and robust design, ideal for engine monitoring systems and other industrial applications

Specifications

• Model: VDO 360-081-064-004C
• Pressure range: 0 to 10 Bar (0 - 145 PSI, 0 - 1000 KPa)
• Maximum pressure: 30 Bar (for up to 2 seconds)
• Thread: M18 x 1.5 (Male)
• Thread length (L2): 12 mm
• Length (L1) thread + nut: 20.5 mm
• Torque: 100 Nm
• Warning contact: 0.60 Bar ± 0.30 Bar, closes with falling pressure
• Warning contact switching capacity: Maximum 5 Watt non-inductive
• Operating voltage: 6 - 24 V DC
• Resistor range: 10 - 184 Ohm
• Pressure sensor signal: Dual-pole insulated return
• Warning contact connector: Bosch push-on connector 2.8x0.8 mm
• Operating temperature range: -25°C to +100°C
• Pressure medium: Oil, Fuel, Air
• Connector type: Bosch push-on connector 2.8x0.8 mm
• Country of Origin: Germany
• OEM Part Number: Compatible with various VDO and industry-specific part numbers
• Weight: 0.3 kg

Applications

• Engine monitoring systems for oil, fuel, and air pressure measurement
• Ideal for use in automotive, industrial, and machinery applications
• Suitable for replacing faulty or worn-out pressure sensors in engine systems

Benefits

• Reliable Pressure Measurement: The sender provides accurate pressure readings across a wide range, ensuring optimal engine performance and safety.
• Warning Contact for Safety: The built-in warning contact alerts when pressure falls below a critical threshold, helping to prevent engine damage and system failures.
• Durable Design: Made with high-quality materials, this pressure sender can withstand extreme temperatures and harsh conditions, offering long-term reliability.
• Easy Installation: With Bosch push-on connectors, installation is straightforward, ensuring a secure and stable connection to the pressure measurement system.
• Versatile Compatibility: Compatible with oil, fuel, and air systems, the sender is ideal for use in various automotive and industrial applications.
• Cost-Effective Maintenance: The VDO pressure sender’s long lifespan and robust design reduce the need for frequent replacements, lowering maintenance costs.
• OEM Quality: Manufactured to meet VDO’s high standards, this pressure sender delivers the same reliability and accuracy as original equipment, ensuring optimal engine performance.
