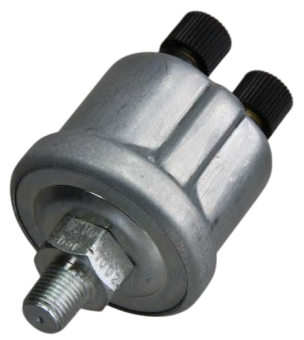

VDO 360-081-032-057C - Pressure Sender 0-10 Bar - R1/8 DIN 2999

VDO 360-081-032-057C - Pressure Sender 0-10 Bar - R1/8 DIN 2999

Key Features:

• Pressure range of 0 to 10 Bar, 0 to 145 PSI, and 0 to 1000 KPa, ideal for measuring oil, fuel, or air pressure in various systems.
• R1/8 DIN 2999 thread for secure and reliable installation in automotive, marine, and industrial systems.
• Sender resistance range of 10 - 184 Ohm, providing accurate pressure signal transmission to monitoring systems.
• Operates with a dual-pole insulated return sensor signal for reliable electrical connections.
• Maximum pressure tolerance of 30 Bar for 2 seconds, providing durability and safety during high-pressure spikes.
• Operating voltage of 6 - 24 V DC, making it compatible with a wide range of electrical systems.
• Wide operating temperature range from -25°C to +100°C, ensuring reliable performance in various environments.
• Optional warning contact can be added (VDO A2C59510886 Makepoint Switch) for additional safety features.
• Plastic knurled nut (M4) connector for easy installation and secure electrical connections.
• Manufactured in Germany, ensuring high-quality engineering and durability for demanding applications.

Specifications:

• Pressure Measurement Range: 0 - 10 Bar (0 - 145 PSI, 0 - 1000 KPa)
• Maximum Pressure: 30 Bar for 2 seconds
• Thread: R1/8" DIN 2999 Male
• Thread Length: 10 mm
• Length of Thread + Nut (L1): 40 mm
• Torque: 30 Nm
• Operating Temperature: -25°C to +100°C
• Operating Voltage: 6 - 24 V DC
• Resistor Range: 10 - 184 Ohm
• Pressure Sensor Signal: Dual-Pole Insulated Return
• Connector Type: M4 Plastic Knurled Nut (2x)
• Warning Contact: None (Optional warning contact available with VDO A2C59510886 Makepoint Switch)
• Packaging: VDO Sensor retail package
• Country of Origin: Germany

Compatibility and Application:

• Designed for engine monitoring systems to measure oil, fuel, or air pressure in automotive, marine, and industrial engines.
• Ideal for use in systems where accurate pressure measurement is required, such as engine oil pressure monitoring.
• Compatible with systems operating at 6 - 24V DC and requiring pressure senders with dual-pole insulated return signals.

Benefits:

• Reliable and accurate pressure measurement, ensuring optimal performance and safety of engines and systems.
• Wide pressure range (0-10 Bar) and high pressure tolerance (30 Bar for 2 seconds) provide flexibility for various applications.
• Built to operate in extreme temperatures from -25°C to +100°C, making it suitable for challenging environments.
• Easy installation with an R1/8 DIN 2999 thread and M4 plastic knurled nut for secure electrical connections.
• Manufactured in Germany, ensuring high quality and durability for long-lasting performance in critical applications.
