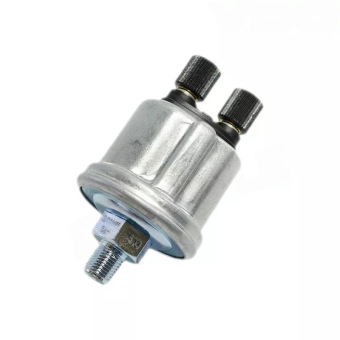

VDO 360-081-032-053C - Pressure Sender 0-10 Bar - M12

VDO 360-081-032-053C - Pressure Sender 0-10 Bar - M12

The VDO 360-081-032-053C Pressure Sender is a reliable and precise sensor designed for measuring engine oil pressure. It offers a pressure range of 0 to 10 Bar (0-145 PSI, 0-1000 KPa), making it ideal for automotive and industrial applications that require accurate pressure readings. This sender features a M12 x 1.5 thread and operates with a resistor range of 10-184 Ohm, providing consistent performance in demanding environments.

Key Features

• Pressure range: 0 to 10 Bar (0-145 PSI / 0-1000 KPa)
• Thread: M12 x 1.5 Male with a thread length of 12mm and total length of 20.5mm
• Operating temperature: -25°C to +100°C, ensuring reliable performance in harsh conditions
• Pressure medium compatibility: Oil, Fuel, and Air
• Electrical operating voltage: 6 - 24 V DC
• Resistor range: 10 - 184 Ohm, with an insulated return sensor signal
• Torque: 40 Nm for secure installation
• Optional VDO A2C59510886 Makepoint Switch for additional warning contact

Specifications

• Model: 360-081-032-053C
• Pressure range: 0 - 10 Bar (0 - 145 PSI, 0 - 1000 KPa)
• Thread: M12 x 1.5 Male
• Operating voltage: 6 - 24 V DC
• Resistor range: 10 - 184 Ohm
• Maximum pressure: 30 Bar (2 seconds)
• Sensor signal: Dual-pole insulated return
• Connector: M4 plastic knurled nut (2x)
• Torque: 40 Nm
• Operating temperature: -25°C to +100°C
• Packaging: VDO Sensor retail package
• Country of origin: Germany

Compatibility and Application

• The VDO 360-081-032-053C Pressure Sender is ideal for use in engine monitoring systems, offering precise and reliable oil pressure readings for automotive and industrial applications.
• Perfect for use in vehicles such as cars, trucks, and motorcycles, as well as in various industrial machinery and equipment where consistent pressure measurements are required.
• With its wide operating temperature range and resistance to harsh environments, this pressure sender is suitable for heavy-duty applications that demand high reliability.
• This sender is especially valuable in systems requiring accurate pressure monitoring of oil, fuel, or air, ensuring optimal performance and long-term durability.

Benefits

• Precise oil pressure measurement for engine monitoring, enhancing overall engine health and performance.
• Wide operating temperature range allows reliable use in extreme conditions.
• Simple installation with M12 x 1.5 thread and M4 plastic knurled nut connector.
• Versatile compatibility with oil, fuel, and air pressure mediums, suitable for various applications.
• Optional warning contact with the VDO A2C59510886 Makepoint Switch for added safety and performance monitoring.

Choose the VDO 360-081-032-053C Pressure Sender for a durable and accurate solution to your engine oil pressure monitoring needs.
