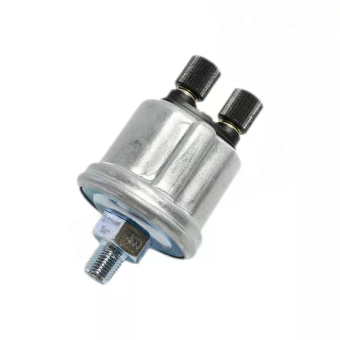

VDO 360-081-030-028C - Pressure Sender 0-5 Bar - M14

SKU: EX 360081030028C

€ 95,86

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The VDO 360-081-030-028C Pressure Sender offers high-precision monitoring for engine oil pressure with a measurement range of 0 to 5 Bar (0 to 72.5 PSI, 0 to 500 KPa). Ideal for automotive, industrial, and marine applications, this pressure sender is designed for use with oil, fuel, and air systems. It features a reliable M14 x 1.5 thread, ensuring secure installation, and a warning contact at 0.50 Bar ± 0.15 Bar for early pressure alerts. With a maximum pressure tolerance of 30 Bar for up to 2 seconds, it provides durability in extreme conditions. Built to withstand temperatures from -25°C to +100°C, the VDO pressure sender guarantees long-term performance and precision in monitoring engine oil pressure, backed by the trusted engineering of VDO.

Description
Ask a Question

VDO 360-081-030-028C - Pressure Sender 0-5 Bar - M14

Key Features:
- Accurate pressure sender with a range of 0 to 5 Bar (0 to 72.5 PSI, 0 to 500 KPa)
- Designed with an M14 x 1.5 thread for secure and reliable installation
- Compatible with various pressure mediums including oil, fuel, and air
- Single-pole common ground sensor with resistance range of 10 - 184 Ohm for precise signal output
- Warning contact at 0.50 Bar ± 0.15 Bar, ensuring timely alerts for critical pressure levels
- Maximum pressure of 30 Bar for up to 2 seconds, providing safety in extreme conditions
- Built to withstand temperatures from -25°C to +100°C for reliable operation in diverse environments
Specifications:
- Manufacturer: VDO
- Part Number: 360-081-030-028C
- Product Type: Pressure Sender
- Pressure Measurement Range: 0 to 5 Bar (0 to 72.5 PSI, 0 to 500 KPa)
- Maximum Pressure: 30 Bar for up to 2 seconds
- Thread: M14 x 1.5 (Male)
- Resistor Range: 10 - 184 Ohm
- Operating Voltage: 6 - 24 Volt DC
- Pressure Sensor Signal: Single-pole common ground
- Warning Contact: 0.50 Bar ± 0.15 Bar
- Warning Contact Switching Capacity: Maximum 5 Watt (non-inductive)
- Warning Contact Features: Closes with falling pressure
- Connector Type: M4 Plastic knurled nut
- Torque: 60 Nm
- Thread Length (L2): 12 mm
- Length of Thread + Nut (L1): 20.5 mm
- Operating Temperature: -25°C to +100°C
- Signal Output: Analog (10 - 184 Ohm)
- Packaging: VDO Sensor Retail Package
- Application: VDO Engine Monitoring
- Country of Origin: Germany
- Category: Pressure Senders
Compatibility and Application:
- Applications: Ideal for engine oil pressure monitoring in automotive, industrial, and marine systems.
- Compatible Mediums: Suitable for oil, fuel, and air pressure systems.
Benefits:
- Ensures precise pressure monitoring to optimize engine performance and safety
- Warning contact alerts at 0.50 Bar ± 0.15 Bar for timely action
- Designed for high-pressure environments with a maximum pressure of 30 Bar for short durations
- Durable design for reliable performance in temperatures ranging from -25°C to +100°C
- Easy to install with an M14 x 1.5 thread and plastic knurled nut connector
- Built for long-term reliability and precision in engine monitoring applications
- Backed by VDO’s trusted engineering and quality standards
