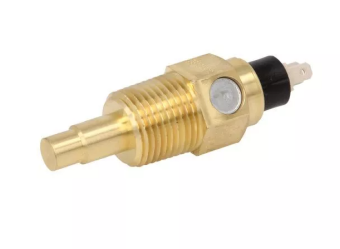

The VDO 323-803-001-025D coolant temperature sensing unit provides an accurate analog resistance signal (287.4–22.7 Ohm) for monitoring temperatures from +40°C to +120°C in automotive and industrial systems. Built for installation in engine cooling and lubrication circuits with a 1/2-14 NPTF male thread, it supports monitoring of coolant, water, air, engine oil, transmission oil, and fuel, and adds an integrated 103°C warning contact to trigger an over-temperature alert for added protection.
- Description
- Ask a Question
-
120°C Coolant Temperature Sensor with 1/2-14 NPTF and 103°C Warning Contact
The VDO 323-803-001-025D is a coolant temperature sender for automotive and industrial monitoring systems, designed to provide consistent temperature feedback to a gauge or control system via an analog resistance output. Installed directly into the fluid or air stream with its 1/2-14 NPTF male thread, it supports reliable thermal monitoring across multiple media and includes a 103°C warning contact that closes as temperature rises to help alert operators to overheating conditions.
Compatibility
- Automotive engine monitoring systems
- Industrial engine and equipment monitoring systems
- Coolant circuits
- Water circuits
- Air temperature measurement points
- Engine oil circuits
- Transmission oil circuits
- Fuel temperature measurement points
Product Details
- Brand: VDO
- Component Type: Coolant Temperature Sender
- Installation: Threaded sender for cooling and fluid-temperature monitoring points
- Signal Concept: Single-pole common ground sensor signal with a separate over-temperature warning contact
Features
- Measures temperature from +40°C to +120°C for accurate system monitoring
- 103°C ± 3°C warning contact helps protect against overheating by triggering an alert
- Analog resistance output of 287.4–22.7 Ohm for stable gauge/control input
- Designed for operation in harsh environments with an operating temperature range of -40°C to +150°C
- Secure, service-friendly installation using a 1/2-14 NPTF threaded connection
Technical Specifications
Part Number 323-803-001-025D Temperature Measurement Range +40°C to +120°C Operating Temperature Range -40°C to +150°C Thread 1/2-14 NPTF male Sender Element Length Plus Thread (L) 40 mm Sensor Diameter 10.8 mm Torque 30 Nm Operating Voltage 6–24 V DC Resistance Range 287.4–22.7 Ohm Resistance at 100°C 38.47 Ohm ± 2.98 Ohm Sensor Signal Single-pole common ground Warning Contact 103°C ± 3°C Warning Contact Switching Capacity 1.2–3 W non-inductive Warning Contact Action Contact closes with rising temperature Temperature Sender Connector AMP male 6.3 x 0.8 mm Warning Contact Connector AMP male 4.8 x 0.8 mm Type of Connection A Predecessor 323803001035D EAN Code 4103590689924 Weight 0.07 kg Country of Origin Czech Republic Packaging VDO sensor retail package Reference VDO 2014 Vehicle Electronics Catalog, page 142–143; English-German temperature sender table: VDO table 1 -
