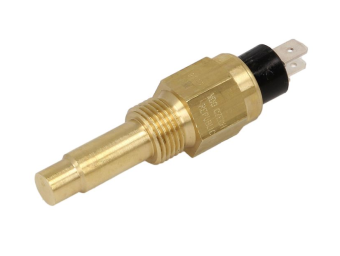

VDO 323-803-001-059D - Coolant Temperature Sender 120°C - 5/8-18 NF-3

VDO 323-803-001-059D - Coolant Temperature Sender 120°C - 5/8-18 NF-3

The VDO 323-803-001-059D Coolant Temperature Sender is a high-precision sensor designed to measure coolant temperature in various automotive and industrial applications. With a temperature range of +40°C to +120°C, this sender provides accurate readings for monitoring engine health. It features a 5/8-18 NF-3 thread and operates within a wide temperature range of -40°C to +150°C, ensuring reliability in demanding conditions. The sender has a resistance range of 287.4 - 22.7 Ohm and utilizes a 1-pole common ground sensor signal. Additionally, the sender includes a warning contact set at 105°C ± 3°C, providing crucial alerts for overheating. The device operates with a voltage range of 6-24V DC and comes with AMP connectors for both the sender and warning contact. Ideal for use in engine monitoring systems, this coolant temperature sender ensures precise, real-time data for vehicle maintenance and performance monitoring.

Key Features:

• Temperature measurement range: +40°C to +120°C, with a warning contact at 105°C ± 3°C
• Reliable 5/8-18 NF-3 male thread for secure installation
• Sender resistance range: 287.4 - 22.7 Ohm for accurate data transmission
• Warning contact switching capacity: 1.2 - 3 Watt, non-inductive, with contact closure as temperature rises
• Operating voltage: 6-24 V DC for compatibility with various systems
• Temperature mediums supported: Coolant, water, air, engine oil, transmission oil, fuel
• Easy-to-connect AMP Male 6.3 x 0.8 mm connectors for both sensor and warning contact

Specifications:

• Temperature Range: +40°C to +120°C
• Operating Voltage: 6 - 24 V DC
• Thread: 5/8-18 NF-3 Male
• Sender Element Length + Thread (L): 40 mm
• Sensor Diameter: 10.8 mm
• Torque: 20 Nm
• Sender Resistance Range: 287.4 - 22.7 Ohm
• Warning Contact Temperature: 105°C ± 3°C
• Warning Contact Switching Capacity: 1.2 - 3 Watt (non-inductive)
• Warning Contact Connector: AMP Male 4.8 x 0.8 mm
• Sensor Signal: Single-Pole Common Ground
• Temperature Medium: Coolant, Water, Air, Engine Oil, Transmission Oil, Fuel
• Packaging: VDO Sensor Retail Package
• Country of Origin: Czech Republic
• Application: VDO Engine Monitoring
• Connector Type: AMP Blade 6.3 x 0.8 mm
• Communication: Analog
• Category: Temperature Sensors

Compatibility and Application:

This VDO Coolant Temperature Sender is designed for use in engine monitoring systems across a variety of vehicles and machinery. It is ideal for accurate monitoring of coolant temperatures, helping to ensure optimal engine performance and prevent overheating.

Benefits:

• Provides precise temperature monitoring from +40°C to +120°C
• Wide operating temperature range of -40°C to +150°C ensures reliability in diverse conditions
• Warning contact at 105°C ± 3°C offers an essential alert for overheating
• Durable and secure 5/8-18 NF-3 thread ensures proper installation
• Supports various temperature mediums, including coolant, water, air, engine oil, transmission oil, and fuel
• Easy-to-use AMP connectors simplify installation and maintenance
