ID
1177044
$ 228.95
1-2 weeks delivery time
-
+
The VDO 230-112-005-011C engine-monitoring pressure switch is a precision 1.50 bar unit designed to trigger a warning signal when pressure drops below the switchpoint, supporting dependable protection of oil, fuel, or air systems. Built for demanding automotive and industrial use, it combines an M10 x 1 male tapered thread for straightforward installation with a dual-pole insulated return, slow contact response, and stable operation across –25 °C to +120 °C, while handling 0–12 bar operating pressure and up to 30 bar briefly.
- Description
- Ask a Question
-

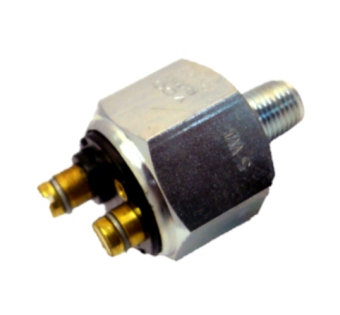

Engine Monitoring Pressure Switch 1.50 Bar with M10 x 1 Thread
Built for dependable pressure warning functions in demanding environments, the VDO 230-112-005-011C is a robust pressure switch used in engine monitoring circuits. It is designed for oil, fuel, and air pressure applications and uses a switching function where the contact closes as pressure falls below 1.50 bar, helping instruments or monitoring systems react quickly to low-pressure conditions.
Compatibility
- VDO engine monitoring applications
- Automotive engine monitoring systems
- Industrial engine monitoring systems
- Oil pressure systems
- Fuel pressure systems
- Air pressure systems
Product Details
- Brand: VDO
- Component Type: Pressure switch
- Signal Type: Dual-pole insulated return
- Switching Behavior: Contact closes with falling pressure
- Housing: Hex 27 mm, unvented contact chamber
- Country of Origin: Germany
Features
- Precise low-pressure warning at 1.50 bar for effective engine monitoring
- Designed for use with oil, fuel, and air pressure media
- M10 x 1 male tapered thread supports secure, service-friendly installation
- Slow contact response supports stable switching behavior in real-world conditions
- Built to withstand demanding pressure and temperature exposure in automotive and industrial systems
- Unvented contact chamber helps protect the switching area in harsh environments
Technical Specifications
Part Number 230-112-005-011C Switchpoint 1.50 bar ± 0.20 bar Pressure Range 0 to 12 bar Maximum Pressure 30 bar (up to 2 seconds) Switch Function Contact closes when pressure falls below 1.50 bar Thread M10 x 1 male tapered (short) Thread + Nut Length (L1) 26 mm Thread Length (L2) 11 mm Installation Torque 30 Nm Operating Voltage 6 to 24 V DC Switching Capacity Maximum 5 W (non-inductive) Electrical Connector M4 screw with dual ring terminals Contact Response Slow Temperature Range –25 °C to +120 °C Pressure Medium Oil, fuel, air Type of Connection Model 1E6 Packaging VDO sensor retail package EAN Code 4103590948908 HS Code 85365080 Weight 0.08 kg Alternative Notation 230 112 005 011C; 230/112/5/11C
Packaging
- Delivered in a VDO sensor retail package for secure handling and storage
-
