$ 13,445.06
1-2 weeks delivery time
-
+
The Simrad NSO evo3S 19" System Pack is a versatile navigation platform designed for professional marine environments, featuring a six-core iMX 8 processor for smooth multitasking with multiple navigation sources. Its modular design allows split-screen layouts and supports radar, sonar, charts, and video, optimized for complex control bridges. It connects with CHIRP, StructureScan 3D, S5100 sounders, HALO™ radar, autopilot, video systems, Fusion® audio, and NMEA 2000® engines, with Ethernet, HDMI, USB, Wi-Fi, and Bluetooth connectivity. It operates on 12/24 V DC with 50 W consumption, dimensions of 478 x 305 x 83 mm, and weighs 4.8 kg.
- Description
- Ask a Question
-

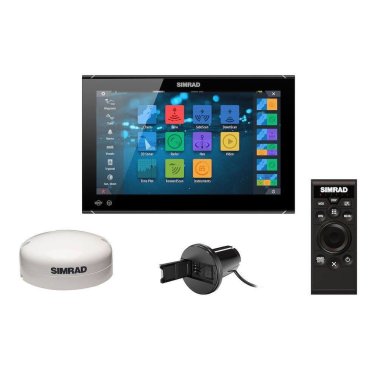

Simrad 000-15127-001 - NSO EVO3S 19" System Pack
The Simrad NSO evo3S 19" System Pack is a powerful and flexible navigation platform designed for professional marine environments. Its modular design and six-core iMX 8 processor ensure ultra-smooth operation, even with multiple navigation sources running at the same time. This system pack is ideal for complex control bridges requiring reliability and scalability.
Key Features
- High-performance modular navigation system
- Latest-generation six-core iMX 8 processor
- Advanced multitasking with radar, sonar, charts, and video
- Highly customizable user interface with split-screen layouts
- Optimized user experience based on the NSS evo3S interface
System Compatibility
- Sounder: CHIRP, StructureScan 3D, S5100
- Radar: HALO™
- Autopilot systems
- Video surveillance systems
- Fusion® audio systems
- Engine control via NMEA 2000®
Connectivity
- Ethernet
- NMEA 2000®
- HDMI
- USB
- Wi-Fi
- Bluetooth
Technical Data
Power Supply DC Tension 12 / 24 V Consumption 50 W Frequency 40–250 / 455–800 kHz Ingress Protection IPX6 & IPX7 Dimensions 478 x 305 Depth 83 mm Weight 4.8 kg Model NSO EVO 3S 19 System Pack
Brand: Simrad | Article: 000-15127-001
-
