The Simrad NSO evo3S 24" is a high-end multifunction display for large vessels, featuring a six-core iMX 8 processor for smooth performance with radar, sonar, charts, cameras, and engine data. Its modular design allows long-term scalability and integration with all Simrad systems, supporting customizable split screens, multi-window views, and compatibility with all Simrad modules. Connectivity includes Ethernet, NMEA 2000®, HDMI, USB, Wi-Fi, and Bluetooth, with a DC power supply of 12/24 V, 80 W consumption, IPX6 & IPX7 protection, and dimensions of 625 x 386 x 83 mm, weighing 7.8 kg.
- Description
- Ask a Question
-

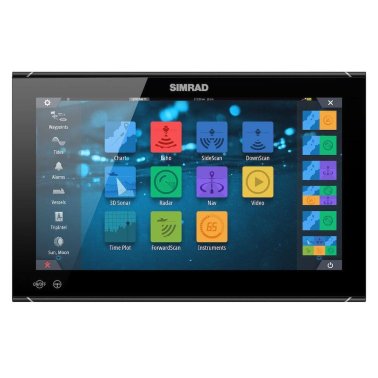

Simrad 000-15051-001 - NSO EVO3S 24" Multifunction Display
The Simrad NSO evo3S 24" is a high-end multifunction navigation display designed for large vessels and fully customized bridge installations. Built around an ultra-powerful six-core iMX 8 processor, this display delivers exceptionally smooth performance, even when running radar, sonar, charts, cameras, and engine data simultaneously. Its modular architecture ensures long-term scalability and seamless integration with all Simrad systems.
Key Features
- Premium modular navigation solution for complex and professional installations
- Ultra-powerful six-core iMX 8 processor for smooth multitasking
- Highly customizable interface with split screens and multi-window views
- Supports combined radar, chart, sonar, video, and engine data displays
- Compatible with all Simrad modules and accessories
- Fast and easy software updates via Wi-Fi or external media
System Compatibility
- Sounder: CHIRP, StructureScan 3D, S5100
- Radar: HALO™
- Autopilot systems
- Video surveillance systems
- Fusion® audio systems
- Engine monitoring and control via NMEA 2000®
Connectivity
- Ethernet
- NMEA 2000®
- HDMI
- USB
- Wi-Fi
- Bluetooth
Technical Data
Power Supply DC Tension 12 / 24 V Consumption 80 W Frequency 40–250 / 455–800 kHz Ingress Protection IPX6 & IPX7 Dimensions 625 x 386 Depth 83 mm Weight 7.8 kg Model NSO EVO 3S 24 - Display Only
Brand: Simrad | Article: 000-15051-001
-
