The Lowrance Elite FS 12 fishfinder (no transducer) provides a 12-inch high-resolution touchscreen, ready for ActiveTarget™ 2 and Active Imaging 3-in-1, upgradeable to HD with S3100. It includes FishReveal™, worldwide basemaps, and wireless, NMEA 2000, and Ethernet integration, allowing full control of Recon and Ghost trolling motors and Power Pole anchors.
- Description
- Ask a Question
-

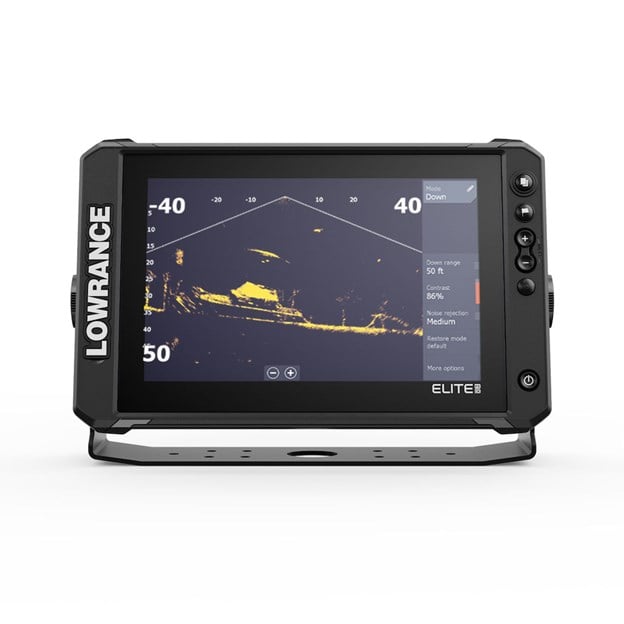

Lowrance 000-16439-001 - Elite FS 12, No Transducer
The Lowrance Elite Fishing System (FS) delivers a complete set of fishfinding and navigation tools designed to help you stay on fish and stay in control. This 12-inch version (no transducer) is ready for ActiveTarget™ 2 Live Sonar, supports Active Imaging™ 3-in-1, and can be upgraded to Active Imaging™ HD 3-in-1 with an S3100 Module. With a high-resolution multi-touch display, onboard wireless, and NMEA 2000® plus Ethernet connectivity, it integrates smoothly with mapping, sonar, and compatible marine systems.
Key Features
- ActiveTarget™ 2 Live Sonar ready
- Active Imaging 3-in-1 ready
- Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
- FishReveal™
- Preloaded worldwide basemap with mapping options including C-MAP, Navionics® and more
- C-MAP® Easy Routing, Navionics® Autorouting™ capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Recon™ and Ghost® Trolling Motor, as well as Power Pole® Anchors
Technical Data
Display
Backlight Color Pure White LED Display Resolution 1280x800 Display Size 12 inches Screen Brightness >1200 nits Viewing Angles 85° top/bottom85° left/right
Connectivity
Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic Ethernet Ports 1 x 100Mbit Connectivity Wi Fi Internal 802.11b/g/n NMEA 0183 Sentences supported None NMEA 2000 Connectivity 1x Micro-C PC Connectivity None SD Card Storage 1 micro SD card up to 32GB Video None
Cartography
Charts supported C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners
Electrical
Power Consumption max 2.5A @ 13.8VDC with backlight on full Power Consumption min 34.5W (2.5A @ 13.8VDC with backlight on full) Power Consumption typical 2.5A @ 13.8VDC with backlight on full Recommended Fuse Rating 3A Supply Voltage 12v DC (10.8-17VDC)
Environment
Humidity 60°C, 95% relative humidity (RH) for 18 hours Operating Temperature Range 5°F to 131°F (-15°C to 55°C ) Shock Vibration 100,000 cycles of 20 G Storage Temperature Range 4°F to 140°F (-20°C to 60°C ) Waterproofrating IPX7 with card door closed
GPS
Correction DGPSWAASMSASEGNOSGLONASS GPS Receiver Channels 16 Position Accuracy 20m RMS Time to First Fix 30s Update rate 10 Hz
Brand: Lowrance
Code: 000-16439-001 -
