The Kohler 20.5EFKOZD marine generator supplies 20.5 kW of stable power, equipped with a sound-absorbing aluminum cocoon and DEC 3500 digital controller, offering advanced monitoring, control, and optional paralleling for complex marine applications.
- Description
- Ask a Question
-

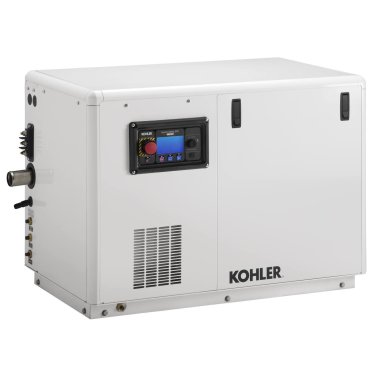

Kohler 20.5EFKOZD - Generator 20.5kW 400V / 50Hz - 12V Cocoon
The Kohler 20.5EFKOZD marine generator delivers robust and stable electrical power for marine applications requiring higher output. Enclosed in a sound-absorbing aluminum cocoon, this generator is equipped with the DEC 3500 digital controller, providing advanced monitoring, protection, and control. Optional paralleling functions allow efficient power sharing for complex onboard systems.
Key Features
- Marine generator set with DEC 3500 digital controller
- Integrated generator monitoring and control system
- Optional paralleling capability for enhanced power management
- Sound-absorbing aluminum cocoon for low-noise operation
- Easy front panel access to consumables
Engine Characteristics
Engine Type Kohler Diesel Engine Speed 1500 rpm (50 Hz) Cycle 4-Stroke Cooling System Seawater / Fresh Water Heat Exchanger
Electrical Characteristics
Rated Power 20.5 kW Frequency 50 Hz Voltage 400 V Generator Type Synchronous Kohler Generator Insulation Class Class H Voltage Regulation ± 1% Adjustable Voltage Yes Battery Charging 12 V or 24 V, 10 A Module
Standard Equipment
- Sound-absorbing aluminum cocoon
- DEC 3500 digital controller
- Line breaker integrated in the cocoon
- Consumables accessible from the front panel
DEC 3500 Digital Control System
- Integrated generator control and supervision
- On / Off / Reset / Auto operating modes
- Rotary knob for intuitive menu navigation
- Emergency stop function
- Large, high-brightness LCD display
- Real-time display of voltage, current, power, alarms, and faults
- Engine diagnostics with history storage up to 1000 events
- CANbus SAE J-1939 and NMEA2000 outputs
- USB interface
- Parallelization management and power control
Options
- Starting voltage: 12 V or 24 V
- Digital remote control
- Anti-siphon kit
- Bipolar insulation for metal enclosures
- Paralleling option with electronic governor for models up to 20.5 kW
Technical Summary
Model 20.5EFKOZD Engine Manufacturer Kohler Output Voltage 400 V Battery Voltage 12 V
Brand: Kohler
-
