The Kohler 13.5EFKOZD marine generator delivers stable onboard power with a sound-absorbing aluminum cocoon and DEC 3500 digital controller, offering integrated monitoring, control, and optional paralleling for quiet and efficient operation.
- Description
- Ask a Question
-

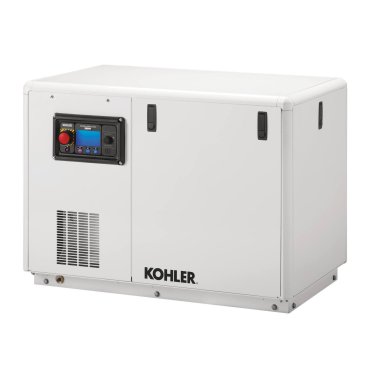

Kohler 13.5EFKOZD - Generator 13.5kW 230V / 50Hz - 12V Cocoon
The Kohler 13.5EFKOZD marine generator is designed to deliver reliable and stable onboard power. It features a sound-absorbing aluminum cocoon and is equipped with the advanced DEC 3500 digital controller, which integrates full generator monitoring and control. This model is ideal for marine applications requiring quiet operation, efficiency, and precise power management.
Key Features
- Marine generator set with DEC 3500 digital controller
- Integrated control and monitoring of the generator set
- Optional paralleling functions
- Sound-absorbing aluminum cocoon for reduced noise
- Easy access to consumables from the front panel
Engine Characteristics
Engine Type Kohler Diesel Engine Speed 1500 rpm (50 Hz) Cycle 4-Stroke Cooling System Seawater / Fresh Water Heat Exchanger
Electrical Characteristics
Rated Power 12 kW Frequency 50 Hz Voltage 230 V Generator Type Synchronous Kohler Generator Insulation Class Class H Voltage Regulation ± 1% Adjustable Voltage Yes
Standard Equipment
- Sound-absorbing aluminum cocoon
- DEC 3500 digital controller
- Line breaker located in the cocoon
- Front panel access to consumables
DEC 3500 Digital Control System
- Integrated generator monitoring and control
- On / Off / Reset / Auto control modes
- Rotary control knob for menu navigation
- Emergency stop function
- Large, high-brightness LCD display
- Real-time display of voltage, current, power, alarms, and faults
- Engine diagnostics with history storage up to 1000 events
- CANbus SAE J-1939 and NMEA2000 outputs
- USB interface
- Parallel management and power control
Options
- Starting voltage: 12 V or 24 V
- Digital remote control
- Anti-siphon kit
- Bipolar insulation for metal enclosures
- Paralleling option for models up to 20.5 kW
Technical Summary
Model 13.5EFKOZD Engine Manufacturer Kohler Output Voltage 230 V Battery Voltage 12 V
Brand: Kohler
-
