The Kohler 17EFKOZD marine generator provides reliable 17 kW onboard power in a sound-absorbing aluminum cocoon, featuring a DEC 3500 digital controller for precise monitoring, control, and optional paralleling in demanding marine environments.
- Description
- Ask a Question
-

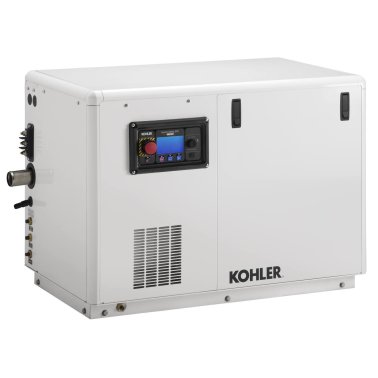

Kohler 17EFKOZD - Generator 17kW 400V / 50Hz - 12V Cocoon
The Kohler 17EFKOZD marine generator is engineered to provide dependable and efficient onboard power for demanding marine environments. Housed in a sound-absorbing aluminum cocoon, this generator is equipped with the advanced DEC 3500 digital controller, ensuring precise monitoring, protection, and control of the generator set. Optional paralleling functions allow flexible power management.
Key Features
- Marine generator set with DEC 3500 digital controller
- Integrated generator control and monitoring
- Optional paralleling capability
- Sound-absorbing aluminum cocoon for quiet operation
- Front panel access to consumables for easy maintenance
Engine Characteristics
Engine Type Kohler Diesel Engine Speed 1500 rpm (50 Hz) Cycle 4-Stroke Cooling System Seawater / Fresh Water Heat Exchanger
Electrical Characteristics
Rated Power 17 kW Frequency 50 Hz Voltage 400 V Generator Type Synchronous Kohler Generator Insulation Class Class H Voltage Regulation ± 1% Adjustable Voltage Yes
Standard Equipment
- Sound-absorbing aluminum cocoon
- DEC 3500 digital controller
- Line breaker integrated in the cocoon
- Consumables easily accessible from the front panel
DEC 3500 Digital Control System
- Integrated generator control and supervision
- On / Off / Reset / Auto operating modes
- Rotary knob for intuitive menu navigation
- Emergency stop function
- Large, high-brightness LCD display
- Real-time monitoring of voltage, current, power, alarms, and faults
- Engine diagnostics with event history storage up to 1000 records
- CANbus SAE J-1939 and NMEA2000 communication outputs
- USB interface
- Parallelization and power management capabilities
Options
- Starting voltage: 12 V or 24 V
- Digital remote control
- Anti-siphon kit
- Bipolar insulation for metal enclosures
- Paralleling option for models up to 20.5 kW
Technical Summary
Model 17EFKOZD Engine Manufacturer Kohler Output Voltage 400 V Battery Voltage 12 V
Brand: Kohler
Barcode: Not Provided -
