The Kohler 09EFKOZD marine generator delivers 9 kW of reliable marine power through a Kohler diesel engine with FOCS control, 4-stroke design, and seawater/coolant heat exchanger. It outputs 230 V at 50 Hz with a synchronous brushless generator, Class H insulation, ±1% voltage regulation, and a 12 V battery charging module. The sound-absorbing aluminum cocoon ensures quiet operation, while the ADC IId digital controller provides monitoring, control, and interface options including CANbus, NMEA 2000, and USB. Additional options include digital remote control, anti-siphon kit, and bipolar insulation for metal hulls.
- Description
- Ask a Question
-

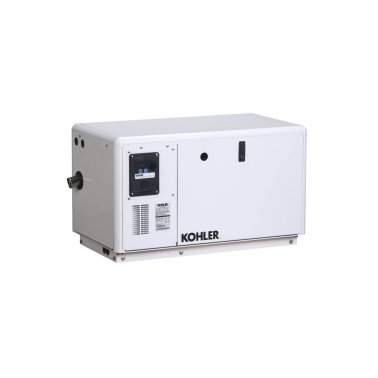

Kohler 09EFKOZD Marine Generator 9 kW 230V 50Hz 12V Cocoon
The Kohler 09EFKOZD marine generator delivers dependable 9 kW power for marine installations where performance, compact design, and low noise are essential. Featuring the advanced ADC IId digital controller, this generator set uses the latest Kohler technology to ensure stable output, reduced weight, and optimized dimensions. The integrated sound-absorbing aluminum cocoon provides quiet operation and easy front access for routine maintenance.
Engine Characteristics
- Kohler diesel engine with FOCS control
- 1500 rpm at 50 Hz
- 4-stroke diesel engine
- Seawater and coolant heat exchanger
Electrical Characteristics
- Nominal power output: 9 kW
- Frequency: 50 Hz
- Voltage: 230 V
- Kohler synchronous brushless generator
- Class H insulation
- Adjustable voltage setting
- Voltage regulation ±1%
- 12 V battery charging module, 10 A
Standard Equipment
- Sound-absorbing aluminum cocoon
- ADC IId digital control unit
- Line breaker integrated inside the cocoon
- Front panel access to consumables
- Starter positioned on the front panel
ADC IId Digital Control System
- Integrated generator control and monitoring
- Sleep mode button
- On / Off control button
- High-brightness LCD display
- 2-line display with 12 characters
- Rotary knob for menu navigation
- Display of operating data and alarm parameters
- CANbus SAE J-1939 output
- NMEA 2000 communication output
- USB interface
Available Options
- Digital remote control
- Anti-siphon kit
- Bipolar insulation for metal hulls
Technical Data
Model 9EFKOZD Power Output 9 kW Frequency 50 Hz Voltage 230 V Engine Manufacturer Kohler
