The Kohler 05EFKOD marine generator provides a compact and reliable 5 kW power solution for marine use, featuring a Kohler diesel engine with FOCS control, 4-stroke design, and a seawater/coolant heat exchanger. It delivers stable 230 V, 50 Hz power with a brushless generator, Class H insulation, and ±1% voltage regulation. The sound-absorbing aluminum cocoon allows quiet operation and easy front access, while the ADC IId digital controller offers monitoring, control, and interfaces including CANbus, NMEA 2000, and USB. Optional features include digital remote control, anti-siphon kit, and bipolar insulation for metal hulls.
- Description
- Ask a Question
-

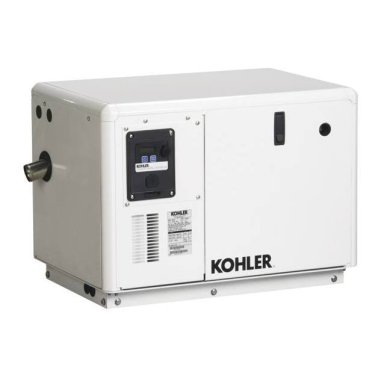

Kohler 05EFKOD Marine Generator 5 kW 230V 50Hz 12V Cocoon
The Kohler 05EFKOD marine generator is a compact and reliable 5 kW power solution designed for marine applications. Equipped with the advanced ADC IId digital controller, this generator set uses the latest Kohler technology to deliver stable performance with reduced weight and optimized dimensions. The sound-absorbing aluminum cocoon ensures quiet operation while maintaining easy access for maintenance.
Engine Characteristics
- Kohler diesel engine with FOCS control
- 1500 rpm at 50 Hz
- 4-stroke engine
- Seawater / coolant heat exchanger
Electrical Characteristics
- Nominal power: 5 kW
- Frequency: 50 Hz
- Voltage: 230 V
- Kohler synchronous brushless generator (except 5 kW models)
- Class H insulation
- Adjustable voltage
- Voltage regulation ±1%
- 12 V battery charging module, 10 A
Standard Equipment
- Sound-absorbing aluminum cocoon
- ADC IId digital controller
- Line breaker integrated in the cocoon
- Front panel access to consumables
- Starter located on the front panel
ADC IId Digital Control
- Integrated generator monitoring and control
- Sleep mode button
- On / Off control button
- High-brightness LCD screen
- 2-line display with 12 characters
- Rotary control knob for menu navigation
- Display of operating data and alarm parameters
- CANbus SAE J-1939 output
- NMEA 2000 output
- USB interface
Available Options
- Digital remote control
- Anti-siphon kit
- Bipolar insulation for metal hulls
Technical Data
Model 5EFKOD Power Output 5 kW Frequency 50 Hz Voltage 230 V Engine Manufacturer Kohler
Brand: Kohler
-
