The Kohler 20.5EFKOZD marine generator offers 20.5 kW of reliable power with a Kohler diesel engine, 4-stroke design, and seawater/freshwater heat exchanger. It delivers 230 V at 50 Hz with a synchronous generator, Class H insulation, ±1% voltage regulation, and 12 V or 24 V battery charging. The sound-absorbing aluminum cocoon ensures quiet operation, and the DEC 3500 digital controller provides monitoring, control, and optional paralleling functions. Optional features include digital remote control, anti-siphon kit, bipolar insulation, and paralleling capability for flexible power management.
- Description
- Ask a Question
-

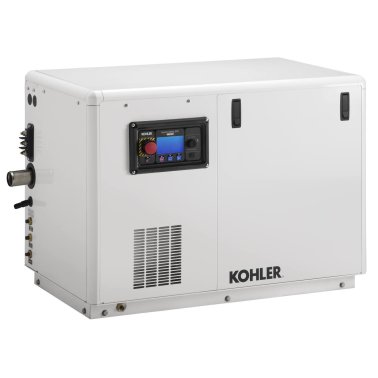

Kohler 20.5EFKOZD Marine Generator 20.5 kW 230V 50Hz 12V Cocoon
The Kohler 20.5EFKOZD marine generator is a reliable and efficient 20.5 kW power unit designed for professional marine installations. Featuring the DEC 3500 digital controller, this generator set provides comprehensive monitoring and control, with optional paralleling capabilities for flexible power management. The sound-absorbing aluminum cocoon ensures quiet operation and easy access for maintenance.
Engine Characteristics
- Kohler diesel engine
- 1500 rpm at 50 Hz
- 4-stroke engine design
- Seawater / fresh water heat exchanger
Electrical Characteristics
- Nominal power output: 20.5 kW
- Frequency: 50 Hz
- Voltage: 230 V
- Kohler synchronous generator
- Class H insulation
- Adjustable voltage
- Voltage regulation ±1%
- 12 V or 24 V battery charging, 10 A module
- Battery charging alternator included for 20.5 kW models
Standard Equipment
- Sound-absorbing aluminum cocoon
- DEC 3500 digital controller
- Line breaker integrated inside the cocoon
- Front panel access to consumables
DEC 3500 Digital Control
- Integrated generator monitoring and control
- On / Off / Reset / Auto control modes
- Rotary knob for intuitive menu navigation
- Emergency stop function
- Large, high-brightness LCD display
- Detailed display of voltage, current, power, alarms, and fault conditions
- Engine diagnostics with history recording of up to 1000 events
- CANbus SAE J-1939 output
- NMEA 2000 communication output
- USB interface
- Parallelization management and power control
Available Options
- Starting voltage 12 V or 24 V
- Digital remote control
- Anti-siphon kit
- Bipolar insulation for metal hulls
- Paralleling option for models up to 20.5 kW
Technical Data
Model 20.5EFKOZD Power Output 20.5 kW Frequency 50 Hz Voltage 230 V Engine Manufacturer Kohler
