Pulse radar dome antenna delivering 4 kW power with low 40 W draw on 12–24 V systems, designed for stable onboard performance with automatic gain control, sea filtering, radar overlay, MARPA tracking support and advanced scan and target processing functions.
- Description
- Ask a Question
-

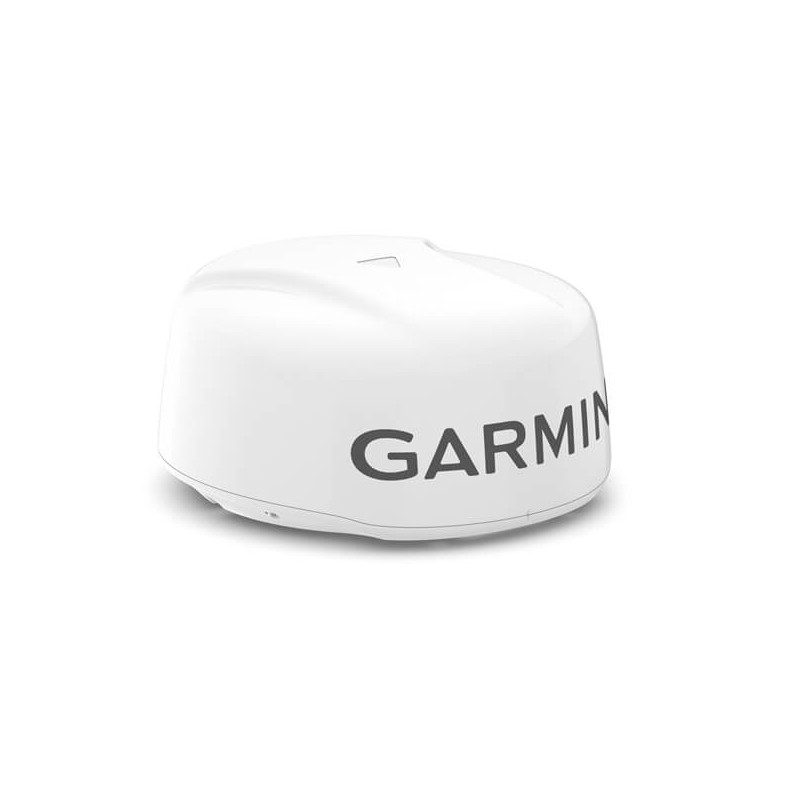

Garmin 010-02843-00 - Antenna GMR 18 HD3 Dome
Description
Pulse radar antenna designed for marine navigation with a maximum transmit power of 4 kW and low energy consumption of 40 W. It operates on a 12–24 V power supply and provides stable performance for onboard systems.
The system includes automatic gain control and a dynamic sea filter to improve image clarity in changing sea conditions. Radar overlay enables integration of radar returns directly onto nautical charts, improving situational awareness during navigation.
MARPA target tracking is supported when used with a heading sensor. Enhanced scan performance increases rotation speed when needed for improved image definition. Scan averaging reduces sea clutter and interference for clearer target detection. Pulse expansion enhances target visibility, while angular target processing improves object shape interpretation across all ranges.
Echo Trail shows historical movement of vessels to assist with collision avoidance. Dual range with overlay allows simultaneous short and long range views with independent settings on the chartplotter display.
Key Features
- 4 kW pulse radar output
- 40 W low power consumption
- 12–24 V DC compatibility
- Automatic gain control
- Dynamic sea clutter filtering
- Radar overlay on charts
- MARPA tracking support (with heading sensor)
- Scan averaging technology
- Pulse expansion enhancement
- Echo Trail vessel tracking
- Dual range display with independent control
Technical Data
Model 010-02843-00 Radar Type Pulse radar Maximum Power 4 kW Power Consumption 40 W Voltage 12–24 V Dimensions 508x248 mm Barcode 0753759320737
Package Contents
- Radar antenna
- Installation kit
- Power cable 15 m
- Network cable 15 m
- Documentation
