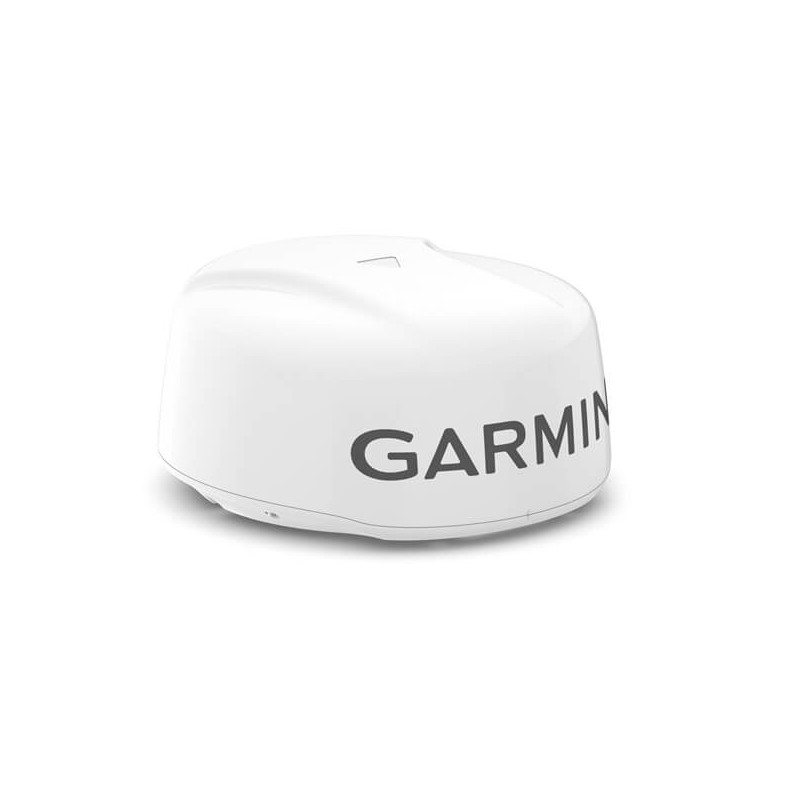

Garmin 010-02841-00 - Antenna GMR 18 X-HD3 Dome
Description
Pulse radar antenna with 4 kW maximum transmit power and low power consumption of only 40 W. Designed for 12–24 V power supply, it delivers stable performance for marine navigation systems. It includes automatic gain control and a dynamic sea filter for improved image clarity in varying sea conditions.
The radar overlay function allows radar data to be displayed directly on nautical charts, supporting safer navigation in complex environments. MARPA target tracking is supported when connected to a heading sensor.
Advanced scan processing improves image quality by increasing rotation speed when required. Scan averaging reduces sea clutter and interference for clearer target detection. Pulse expansion enhances target definition, while angular target processing improves object shape interpretation at all ranges. Echo Trail displays historical vessel movement trails to support collision avoidance. Dual range with overlay enables simultaneous short and long range views with independent settings.
Key Features
- 4 kW pulse radar performance
- Low 40 W power consumption
- 12–24 V DC power supply
- Automatic gain control system
- Dynamic sea clutter filter
- Radar overlay on chart display
- MARPA tracking support (with heading sensor)
- Scan averaging technology
- Pulse expansion for target enhancement
- Echo Trail vessel tracking history
- Dual range view with independent controls
Technical Data
Model 010-02841-00 Radar Type Pulse radar Maximum Power 4 kW Power Consumption 40 W Voltage 12–24 V Dimensions 508x248 mm Barcode 0753759320744
Package Contents
- Radar antenna
- Installation kit
- Power cable 15 m
- Network cable 15 m
- Documentation
Brand: Garmin
-
