Garmin Spectra LC302 LED control module is a marine lighting controller for managing RGB, RGBW, and CRGBW lighting zones via chartplotter or smartphone, supporting multi-zone control and IP66/IP67-rated durability.
- Description
- Ask a Question
-

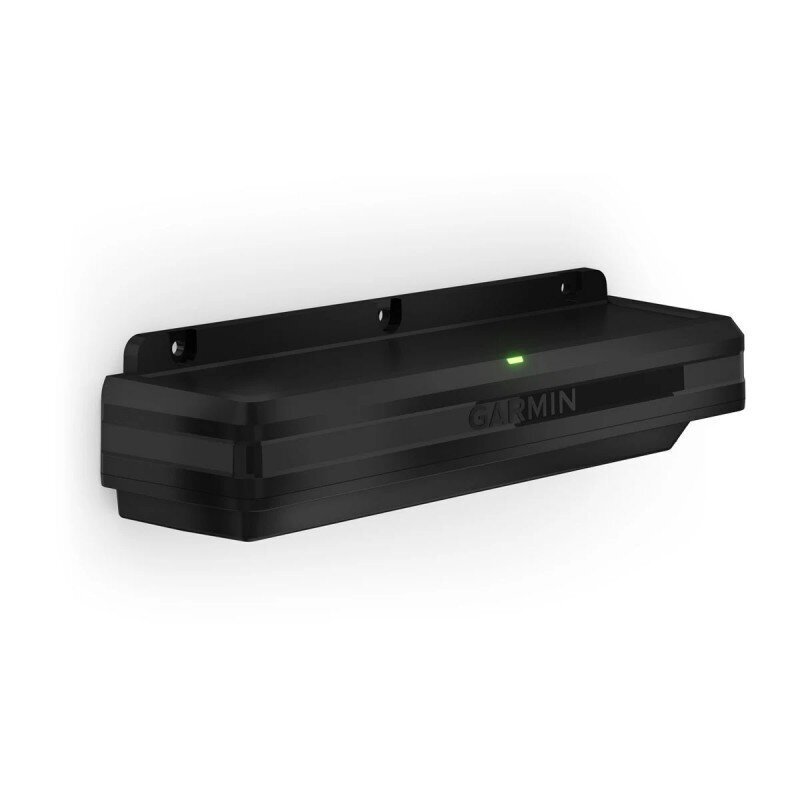

Garmin 010-02830-00 - Spectra™ LC302 LED Control Module
LED light control module designed for marine environments, allowing control of onboard lighting through a compatible chartplotter or smartphone. The system enables grouping and managing different lighting zones such as cup holders, speakers, strip lights, and courtesy lighting to create customizable onboard illumination. Lights are not included.
Technical Data
Unit Dimensions LC302 (WxHxD) 197 x 52 x 47 mm Unit Dimensions LC102 (WxHxD) 113 x 52 x 47 mm Weight LC302 158 g (5.57 oz) Weight LC102 83 g (2.93 oz) Water Rating IP66/IP67 Operating Temperature Range 0° to 50° C (32° to 122° F) Compass-Safe Distance 20 cm (7.87″) Cable Construction Multistrand tinned copper with white PVC outer jacket Input Voltage 10.8 to 16 V (12 V system) / 21.6 to 32 V (24 V system) Input Current (Max) LC302: 6 A / LC102: 2 A Output Current (Max) 2 A per output connector NMEA 2000® LEN 2 (≤ 70 mA) Protection Over voltage protection, Over current protection LED Connection Types RGB, RGBW, CRGBW, single channel Warranty 2 years / 1 year
Lighting Control Features
Supports flexible LED zone management for marine lighting systems, enabling independent control of multiple light groups for enhanced ambient customization and functional deck illumination.
Barcode: 0753759306922
Brand: Garmin
-
