ID
1339008
$ 1,868.02
1-2 weeks delivery time
-
+
The Dolphin 399454 Pro Evo3 Charger 12V 90Ah provides intelligent, efficient multi-bank charging in a lightweight and compact design. Featuring four isolated DC outputs, DSP technology, eight selectable charging profiles, and NMEA 2000 connectivity, it ensures safe and high-performance operation for Lead-Acid, Gel, AGM, and Lithium-Ion batteries.
- Description
- Ask a Question
-

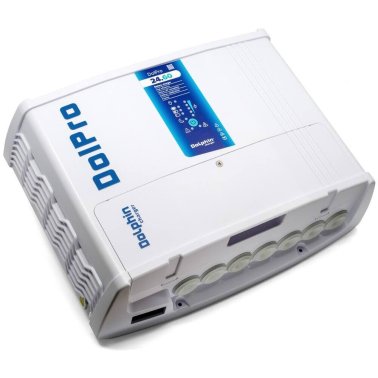

Dolphin 399454 - Dolphin Pro Evo3 Charger 4 Outputs 12V 90Ah 115 / 230V
The Dolphin Pro Evo3 Charger delivers cutting-edge power electronics in an ultra-compact and lightweight design. Purpose-built for demanding marine environments, it ensures reliable, efficient, and intelligent charging across multiple battery banks with exceptional power-to-size efficiency.
Key Features
- Up to 60% lighter than previous generation chargers
- High-efficiency DSP technology delivering full power up to 50°C
- Four independent and isolated DC outputs
- Eight selectable charging profiles with temperature compensation
- Compatible with Lead-Acid, Gel, AGM, and Lithium-Ion batteries
- NMEA 2000 certified connectivity with integrated CAN communication
- Ignition protected, compliant with ISO 8846 and SAE J1171
Technical Data
Model Dolphin Pro Evo3 Voltage 12 V Charging Capacity 90 Ah Charging Current 90 A AC Input 115 / 230 V Frequency 50 / 60 Hz Number Of Outputs 4 Number Of Inputs 1 Ingress Protection IP22 Temperature Range -10°C to +55°C Dimensions (L x W x H) 360 mm x 122 mm x 284 mm Weight 3.5 kg
Brand: Dolphin
-
