ID
1339011
$ 3,036.30
1-2 weeks delivery time
-
+
The Dolphin 399484 Pro Evo3 Charger 24V 100Ah is a high-capacity marine charger with four isolated DC outputs, DSP technology, and temperature-compensated charging profiles. It supports multiple battery types, is NMEA 2000 certified, ignition protected, and designed for efficient, reliable performance in demanding marine environments.
- Description
- Ask a Question
-

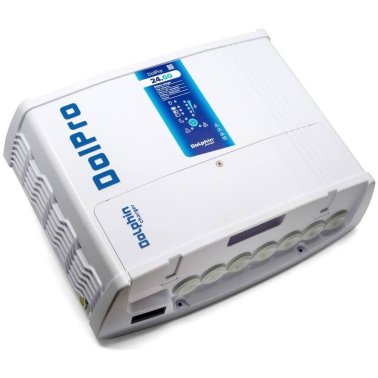

Dolphin 399484 - Dolphin Pro Evo3 Charger 4 Outputs 24V 100Ah 230V
The Dolphin Pro Evo3 24V 100Ah charger is designed for high-demand marine power systems requiring maximum charging capacity in a minimal footprint. Its advanced electronics ensure safe, efficient, and reliable charging even in harsh environments.
Key Features
- High power output with compact and lightweight construction
- DSP technology delivering full power up to 50°C
- Four isolated DC outputs for superior battery bank management
- Eight selectable charging profiles with temperature compensation
- Supports Lead-Acid, Gel, AGM, and Lithium-Ion batteries
- NMEA 2000 certified with integrated CAN communication
- Ignition protected in compliance with ISO 8846 and SAE J1171
Technical Data
Model Dolphin Pro Evo3 Voltage 24 V Charging Capacity 100 Ah Charging Current 100 A AC Input 230 V Frequency 50 / 60 Hz Number Of Outputs 4 Number Of Inputs 1 Ingress Protection IP22 Temperature Range -10°C to +55°C Dimensions (L x W x H) 360 mm x 122 mm x 284 mm Weight 3.5 kg
Brand: Dolphin
-
